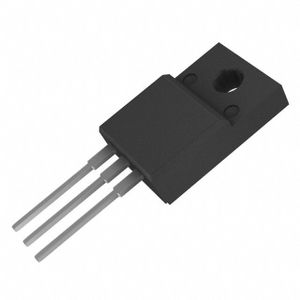

دیتاشیت IXFP22N65X2M
مشخصات دیتاشیت
| نام دیتاشیت |

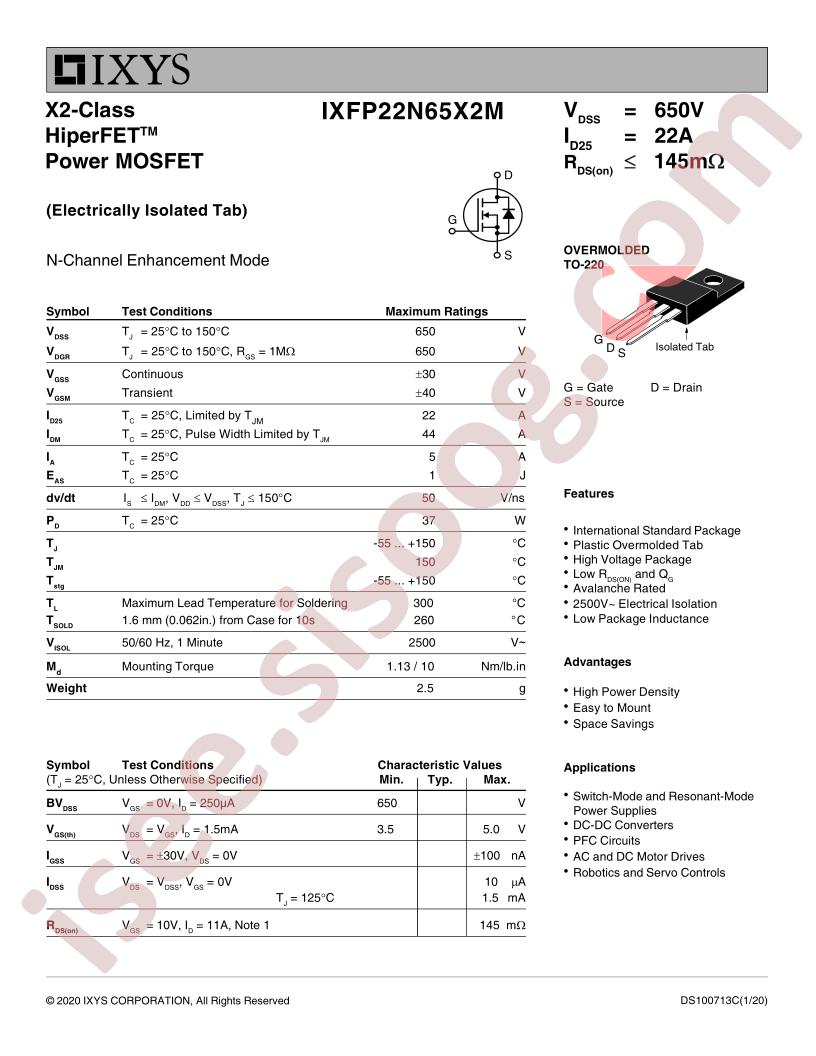

IXFP22N65X2M
|
| حجم فایل |
583.471
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
IXYS IXFP22N65X2M
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
37W
-
Total Gate Charge (Qg@Vgs):
37nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
2190pF@25V
-
Continuous Drain Current (Id):
22A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@1.5mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
145mΩ@10V,11A
-
Package:
TO-220
-
Manufacturer:
IXYS
-
Series:
HiPerFET™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
650V
-
Current - Continuous Drain (Id) @ 25°C:
22A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
145mOhm @ 11A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 1.5mA
-
Gate Charge (Qg) (Max) @ Vgs:
37nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
2190pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
37W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220 Isolated Tab
-
Package / Case:
TO-220-3 Full Pack, Isolated Tab
-
detail:
N-Channel 650V 22A (Tc) 37W (Tc) Through Hole TO-220 Isolated Tab
