دیتاشیت CD4024BE

CD4020B/24B/40B Types

مشخصات دیتاشیت

نام دیتاشیت CD4020B/24B/40B Types
حجم فایل 1649.96 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت CD4020B/24B/40B Types

CD4020B/24B/40B Types Datasheet

مشخصات

  • Number of Elements: 1
  • Operating Temperature: -55°C ~ 125°C
  • Base Part Number: CD4024
  • Supplier Device Package: 14-PDIP
  • Voltage - Supply: 3V ~ 18V
  • Part Status: Active
  • Reset: Asynchronous
  • Direction: Up
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Timing: -
  • Trigger Type: Negative Edge
  • Series: 4000B
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Manufacturer: Texas Instruments
  • Count Rate: 24MHz
  • Logic Type: Binary Counter
  • Number of Bits per Element: 7
  • detail: Counter IC Binary Counter 1 Element 7 Bit Negative Edge 14-PDIP

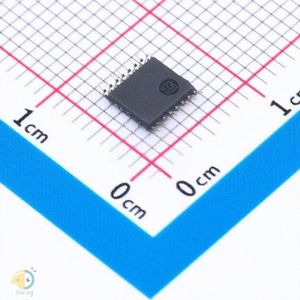

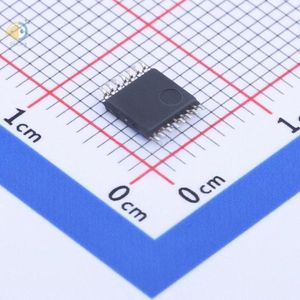

دیتاشیت محصولات مشابه
