- SN74LVC1G125DBVR

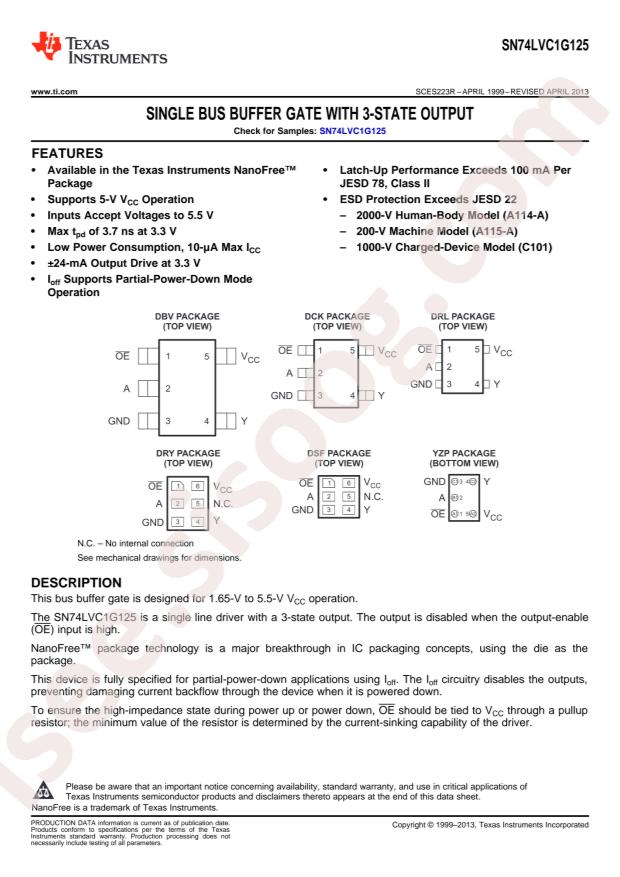

SN74LVC1G125DBVR Datasheet
Datasheet specifications
| Datasheet's name | SN74LVC1G125DBVR |
|---|---|
| File size | 85.753 KB |
| File type | |
| Number of pages | 25 |
Download Datasheet SN74LVC1G125DBVR |
Download Datasheet |
|---|
Other documentations
Logic Guide 20 pages
SN74LVC1G125 41 pages
Technical specifications
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVC1G125DBVR
- output type: Tri-State
- Logic Family: 74LVC
- Sink Current: 32mA
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Number of Elements: 1
- Operating Temperature: -40°C~+125°C
- Number of Bits per Element: 1
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Package / Case: SC-74A, SOT-753
- Base Part Number: SN74LVC1G
- Logic Type: Buffer, Non-Inverting
- Current - Output High, Low: 32mA, 32mA
- Supplier Device Package: SOT-23-5
- Mounting Type: Surface Mount
- Part Status: Active
- Series: 74LVC
- Input Type: -
- Packaging: Cut Tape (CT)
- Voltage - Supply: 1.65V ~ 5.5V
- detail: Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output SOT-23-5
