دیتاشیت LM258P
مشخصات دیتاشیت
| نام دیتاشیت | LM158(A), 258(A), 358(A), 2904(V) |
|---|---|
| حجم فایل | 3380.794 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 56 |
دانلود دیتاشیت LM158(A), 258(A), 358(A), 2904(V) |

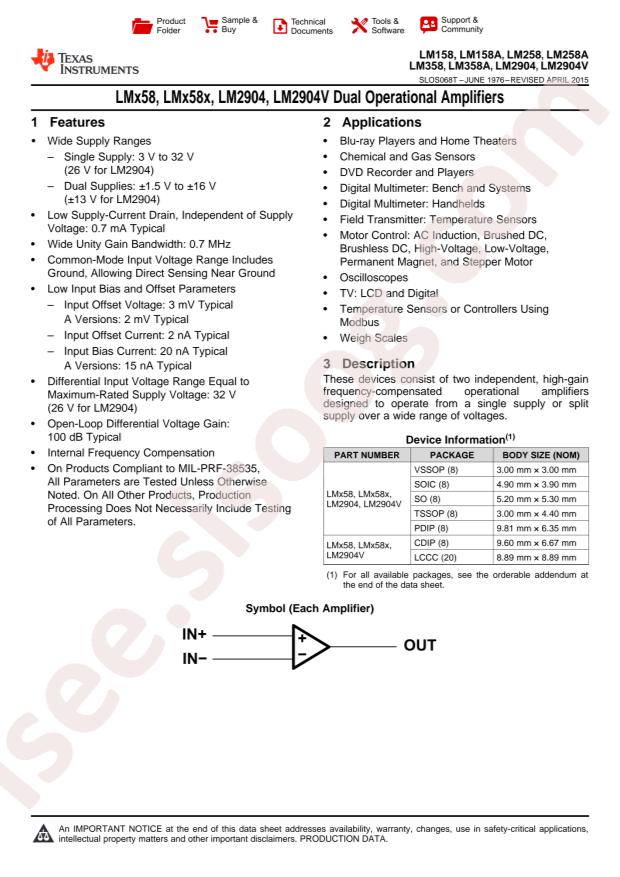

LM158(A), 258(A), 358(A), 2904(V) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments LM258P
- -3db Bandwidth: -
- Output Current: 40mA
- Supply Current: 1mA
- Number of Circuits: 2
- Operating Temperature: -25°C~+85°C
- Current - Input Bias(Ib): 20nA
- Gain Bandwidth Product(GBP): 700kHz
- Package: DIP-8
- Manufacturer: Texas Instruments
- Base Part Number: LM258
- Current - Supply: 1mA
- Package / Case: 8-DIP (0.300", 7.62mm)
- Series: -
- Slew Rate: 0.3V/µs
- Supplier Device Package: 8-PDIP
- Mounting Type: Through Hole
- Output Type: -
- Current - Input Bias: 20nA
- Amplifier Type: General Purpose
- Packaging: Tube
- Voltage - Input Offset: 3mV
- Gain Bandwidth Product: 700kHz
- Part Status: Active
- Voltage - Supply, Single/Dual (±): 3V ~ 32V, ±1.5V ~ 16V
- detail: General Purpose Amplifier 2 Circuit 8-PDIP
