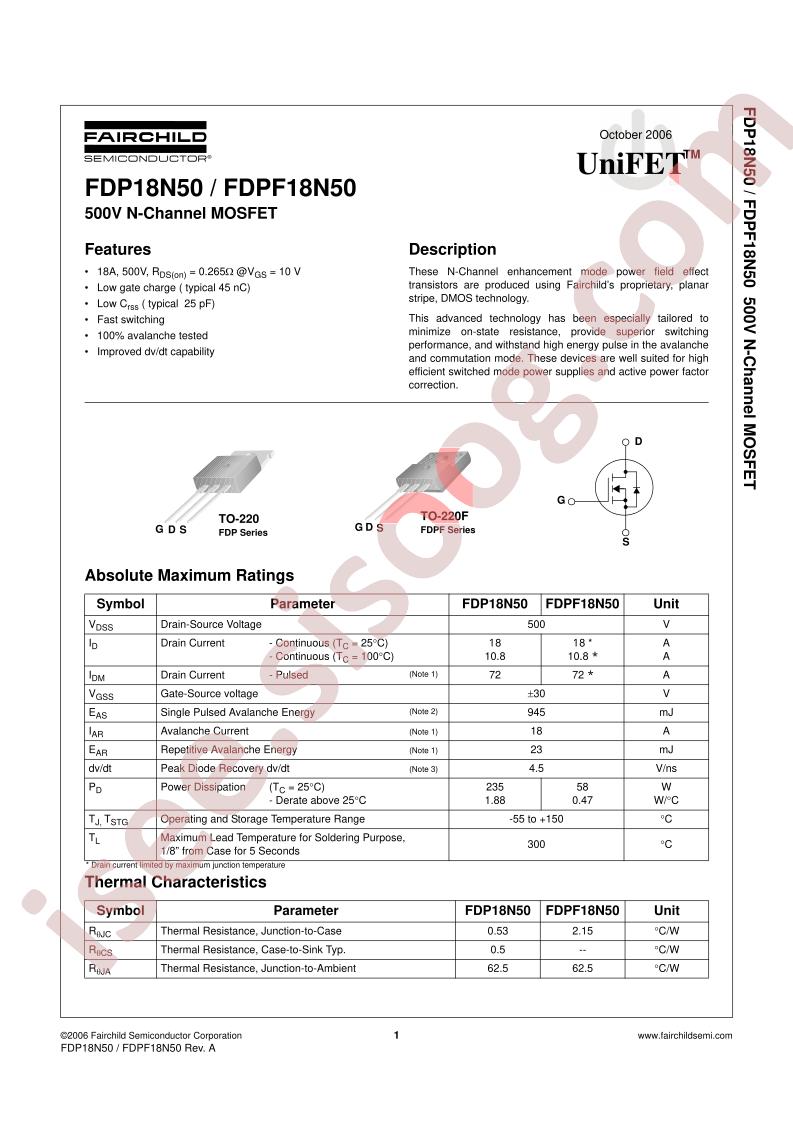

FDP18N50 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDP18N50
|
|
حجم فایل
|
1057.874
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDPF18N50
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
58W
-
Total Gate Charge (Qg@Vgs):
60nC@10V
-
Drain Source Voltage (Vdss):
500V
-
Input Capacitance (Ciss@Vds):
2860pF@25V
-
Continuous Drain Current (Id):
18A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
265mΩ@10V,9A
-
Package:
TO-220IS
-
Manufacturer:
onsemi
-
Series:
UniFET™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
500V
-
Current - Continuous Drain (Id) @ 25°C:
18A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
265mOhm @ 9A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
60nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
2860pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
38.5W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220F
-
Package / Case:
TO-220-3 Full Pack
-
Base Part Number:
FDPF1
-
detail:
N-Channel 500V 18A (Tc) 38.5W (Tc) Through Hole TO-220F
