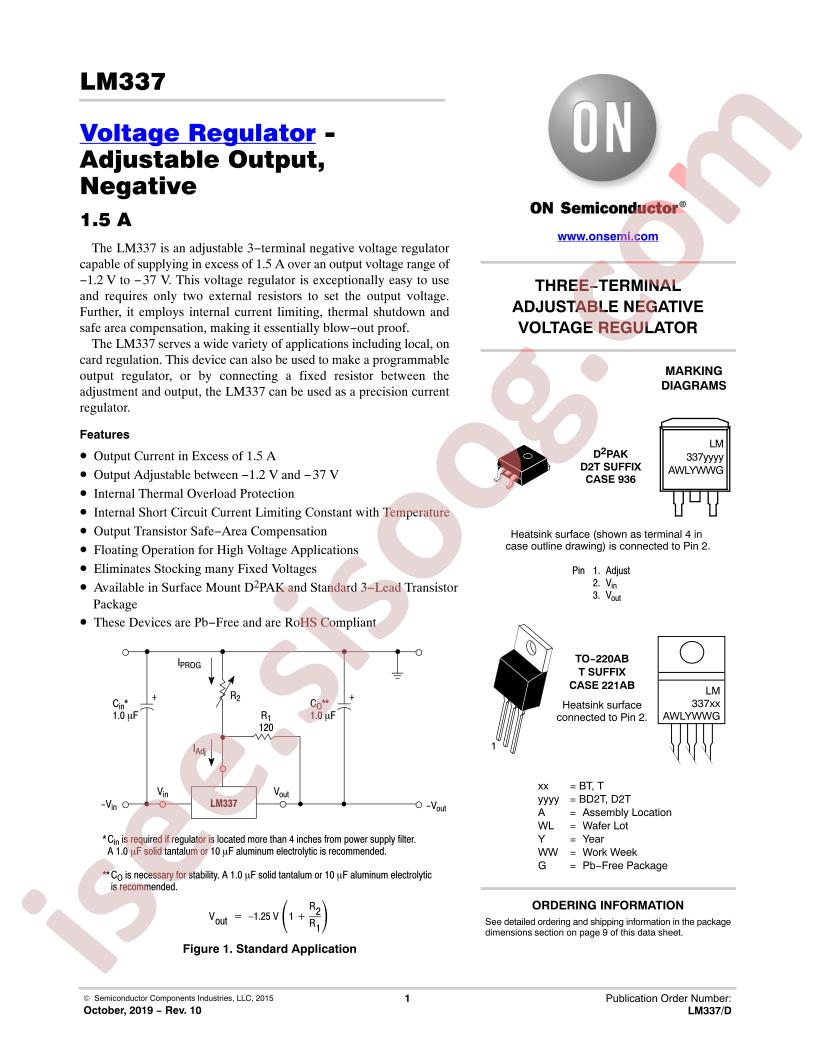

LM337BT Datasheet

LM337

Datasheet specifications

Datasheet's name LM337
File size 174.591 KB
File type pdf
Number of pages 11

Download Datasheet LM337

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Negative
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): -40V
  • Voltage - Output (Min/Fixed): -1.2V
  • Voltage - Output (Max): -37V
  • Voltage Dropout (Max): -
  • Current - Output: 1.5A
  • Current - Quiescent (Iq): 6mA
  • Current - Supply (Max): 10mA
  • PSRR: 77dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: LM337
