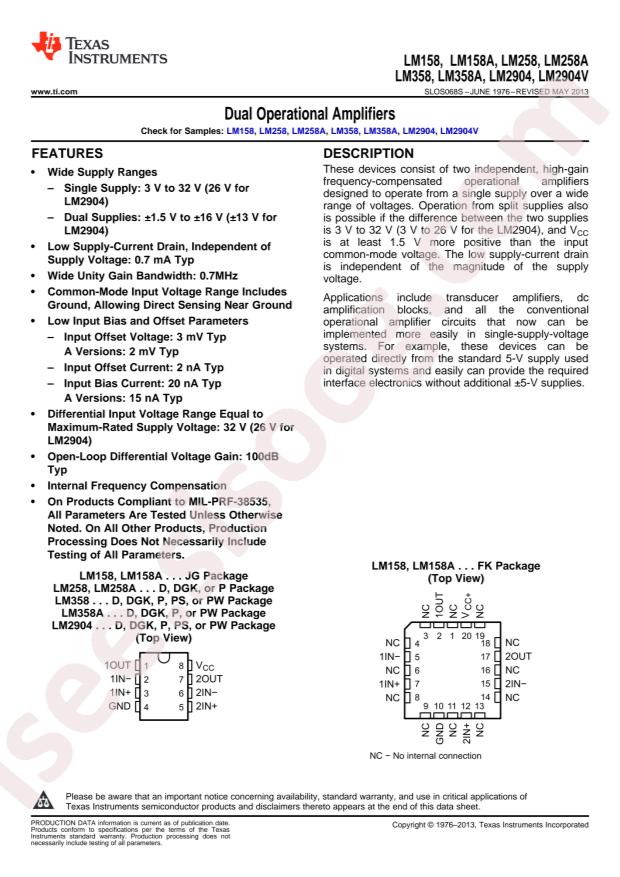

LM2904DR Datasheet
Datasheet specifications
| Datasheet's name | LM2904DR |
|---|---|
| File size | 102.648 KB |
| File type | |
| Number of pages | 34 |
Download Datasheet LM2904DR |
Download Datasheet |
|---|
Other documentations
LM158,258,358(A),2904(V) Datasheet 56 pages
Technical specifications
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments LM358P
- -3db Bandwidth: -
- Output Current: 40mA
- Supply Current: 1mA
- Number of Circuits: 2
- Operating Temperature: 0°C~+70°C
- Current - Input Bias(Ib): 20nA
- Gain Bandwidth Product(GBP): 700kHz
- Package: DIP-8
- Manufacturer: Texas Instruments
- Base Part Number: LM358
- Current - Supply: 1mA
- Package / Case: 8-DIP (0.300", 7.62mm)
- Series: -
- Slew Rate: 0.3V/µs
- Supplier Device Package: 8-PDIP
- Current - Output / Channel: 30mA
- Mounting Type: Through Hole
- Output Type: -
- Current - Input Bias: 20nA
- Amplifier Type: General Purpose
- Packaging: Tube
- Voltage - Input Offset: 3mV
- Gain Bandwidth Product: 700kHz
- Part Status: Active
- Voltage - Supply, Single/Dual (±): 3V ~ 32V, ±1.5V ~ 16V
