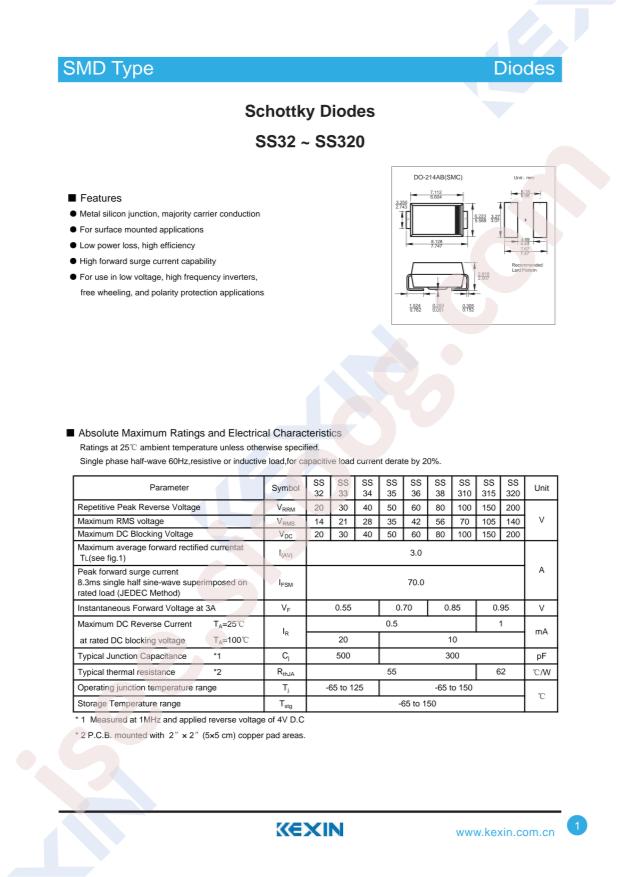

دیتاشیت SS36
مشخصات دیتاشیت
| نام دیتاشیت | SS36 |
|---|---|
| حجم فایل | 71.833 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 2 |
SS36 |
دانلود دیتاشیت |
|---|
سایر مستندات
SS32 - S310 4 pages
SS38 2 pages
SS38 3 pages
SS38 3 pages
SS32 2 pages
SS32 3 pages
SS34 2 pages
SS34 4 pages
SS34 3 pages
SS34 2 pages
SS34 3 pages
SS34 2 pages
SS34 7 pages
SS34 3 pages
SS34 3 pages
SS34 2 pages
SS34 3 pages
SS34 3 pages
SS34 2 pages
SS36 4 pages
SS36 2 pages
SS36 4 pages
SS36 3 pages
SS36 4 pages
SS36 2 pages
SS36 3 pages
SS36 2 pages
SS36 3 pages
SS36 3 pages
SS36 2 pages
SS36 2 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: YFW SS36
- Diode Configuration: Single
- Reverse Voltage (Vr): 60V
- Forward Voltage (Vf@If): 700mV@3A
- Reverse Leakage Current (Ir): 500uA@60V
- Average Rectified Current (Io): 3A
- Package: SMC(DO-214AB)
- Manufacturer: YFW
- Peak forward surge current: 70A
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 750mV @ 3A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 500µA @ 60V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: SMC (DO-214AB)
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: SS36
- detail: Diode Schottky 60V 3A Surface Mount SMC (DO-214AB)
