دیتاشیت SN74HC74N

مشخصات دیتاشیت

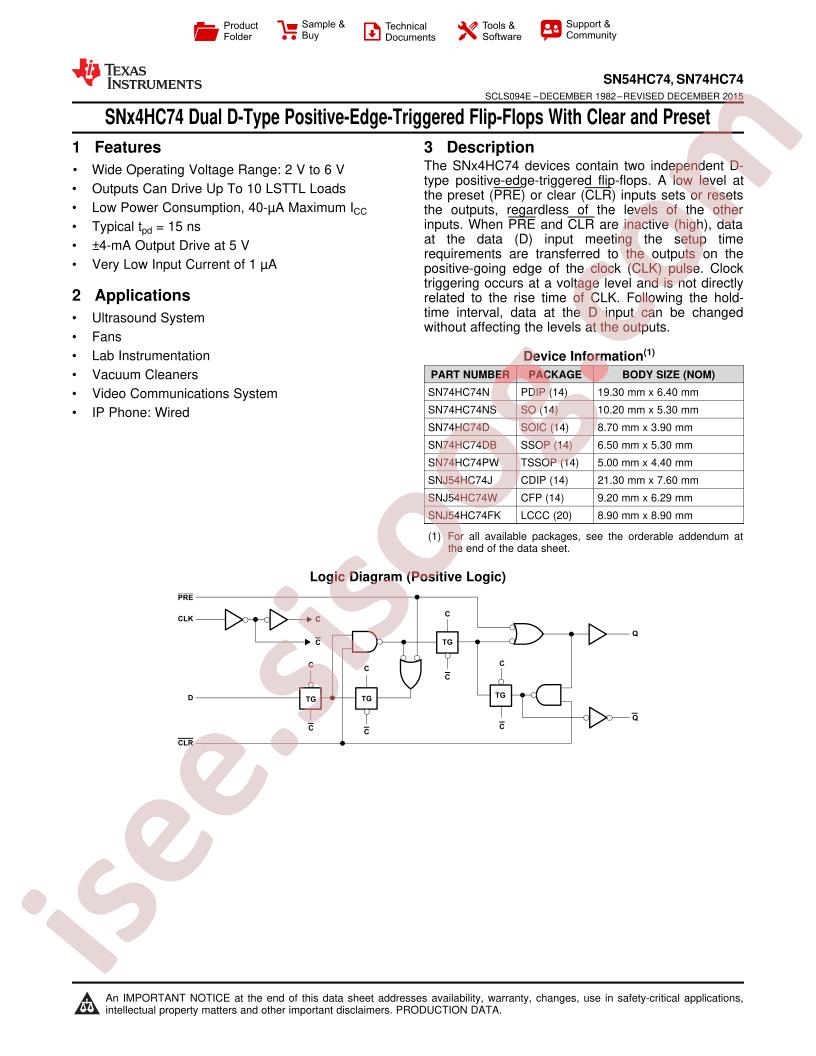

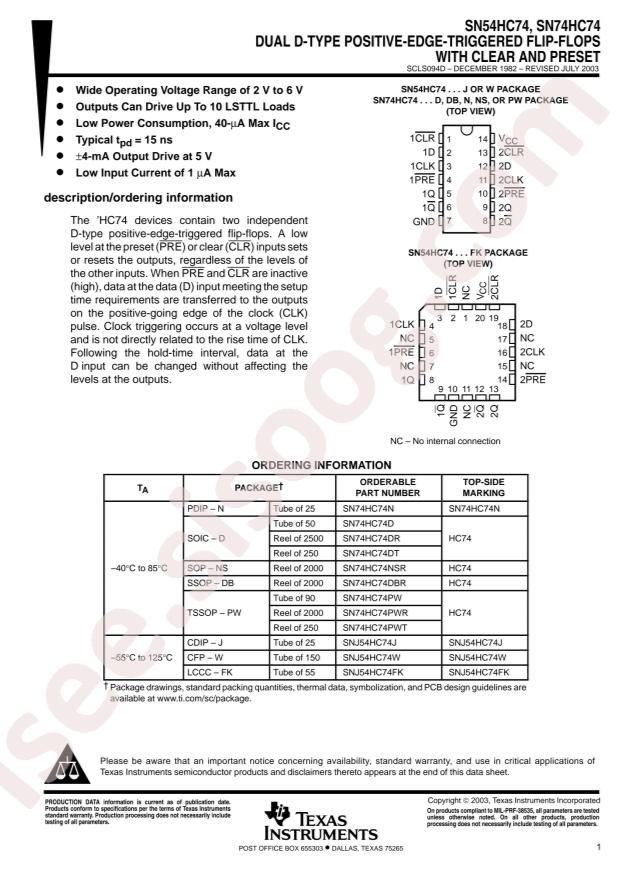

دانلود دیتاشیت SN54HC74, SN74HC74	SN54HC74, SN74HC74 Datasheet

RoHS: true
Type: D-Type
Series: 74HC
Category: Logic ICs/Flip Flops
Function: 置位和复位
Datasheet: Texas Instruments SN74HC74N
Output Type: 互补型
Sink Current: 5.2mA
Trigger Type: 上升沿
Source Current: 5.2mA
Supply Voltage: 2V~6V
Clock Frequency: 60MHz
Input Capacitance: 3pF
Operating Temperature: -40°C~+85°C
Quiescent Current (Iq): 4uA
Maximum Propagation Delay: 30ns@6V,50pF
Number of Bits per Element: 1
Package: DIP-14
Manufacturer: Texas Instruments
Number of Elements: 2
Voltage - Supply: 2V ~ 6V
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Supplier Device Package: 14-PDIP
Current - Output High, Low: 5.2mA, 5.2mA
Part Status: Active
Base Part Number: SN74HC7
Mounting Type: Through Hole
Current - Quiescent (Iq): 4µA
Max Propagation Delay @ V, Max CL: 30ns @ 6V, 50pF
detail: Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-DIP (0.300", 7.62mm)
