دیتاشیت CD4518BE

CD4518B,20B Types

مشخصات دیتاشیت

نام دیتاشیت CD4518B,20B Types
حجم فایل 1329.191 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت CD4518B,20B Types

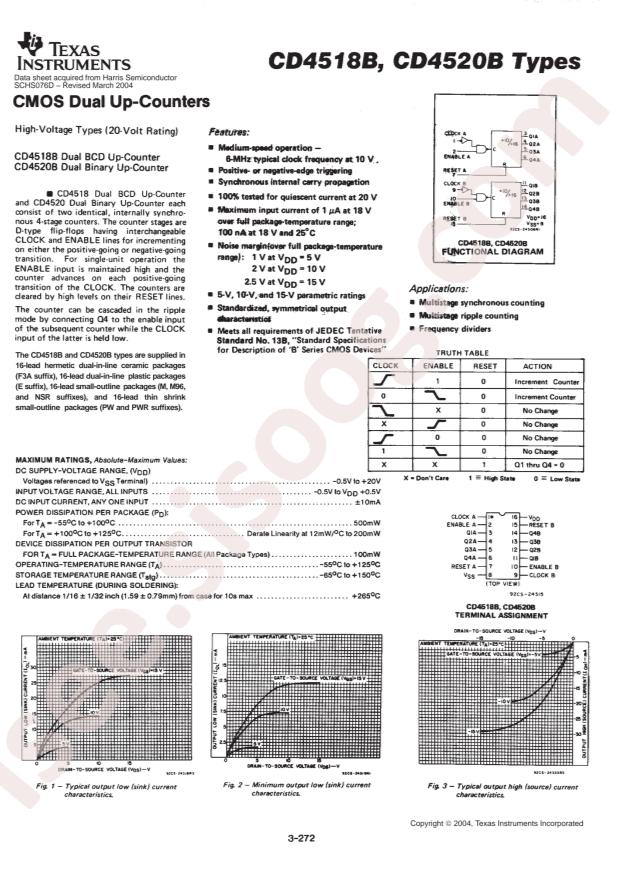

CD4518B,20B Types Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Counters / Dividers
  • Datasheet: Texas Instruments CD4518BE
  • Direction: 向上计数器
  • Count Rate: 8MHz
  • Logic Type: BCDCounter
  • Reset Style: Asynchronous
  • Timing mode: Synchronous
  • Trigger Type: Positive Edge;Negative Edge
  • Supply Voltage: 3V~18V
  • Number of Elements: 2
  • Operating Temperature: -55°C~+125°C
  • Number of Bits per Element: 4
  • Package: DIP-16
  • Manufacturer: Texas Instruments
  • Timing: Synchronous
  • Reset: Asynchronous
  • Voltage - Supply: 3V ~ 18V
  • Part Status: Active
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Series: 4000B
  • Supplier Device Package: 16-PDIP
  • Base Part Number: CD4518
  • detail: Counter IC BCD Counter 2 Element 4 Bit Positive, Negative 16-PDIP
