دیتاشیت ULN2065B

مشخصات دیتاشیت

دانلود دیتاشیت ULN20xxB	ULN20xxB Datasheet

RoHS: true
Category: Triode/MOS Tube/Transistor/Darlington Transistor Arrays

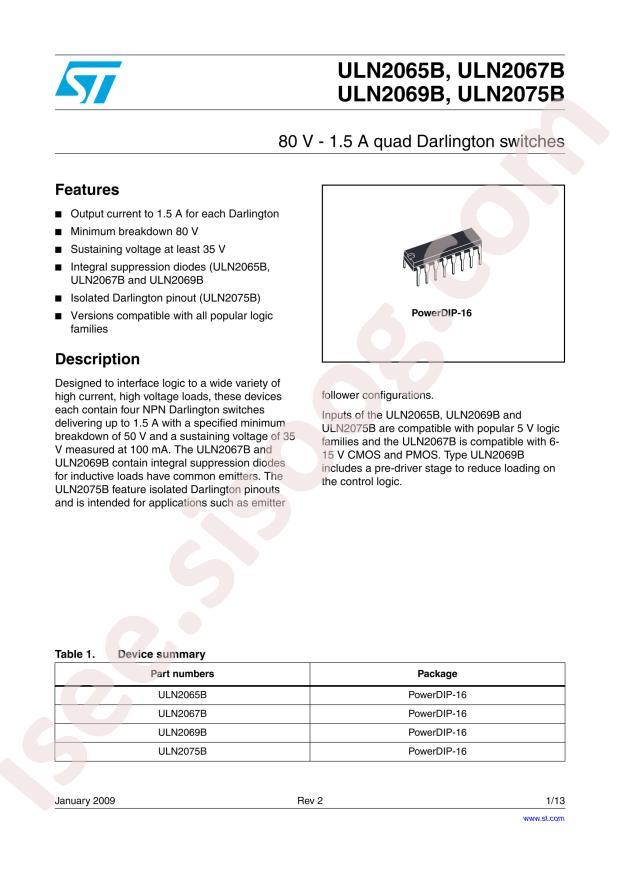

Datasheet: STMicroelectronics ULN2065B
Package: PowerDIP-16
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Transistor Type: 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max): 1.75A
Voltage - Collector Emitter Breakdown (Max): 80V
Vce Saturation (Max) @ Ib, Ic: 1.5V @ 2.25mA, 1.5A
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: -
Power - Max: 1W
Frequency - Transition: -
Operating Temperature: -20°C ~ 85°C (TA)
Mounting Type: Through Hole
Package / Case: 16-PowerDIP (0.300", 7.62mm)
Supplier Device Package: 16-PowerDIP (20x7.10)
Base Part Number: ULN206
detail: Bipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 80V 1.75A 1W Through Hole 16-PowerDIP (20x7.10)
