دیتاشیت UC3846N
مشخصات دیتاشیت
| نام دیتاشیت | UC1846/7, UC2846/7, UC3846/7 |
|---|---|
| حجم فایل | 1709.505 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت UC1846/7, UC2846/7, UC3846/7 |

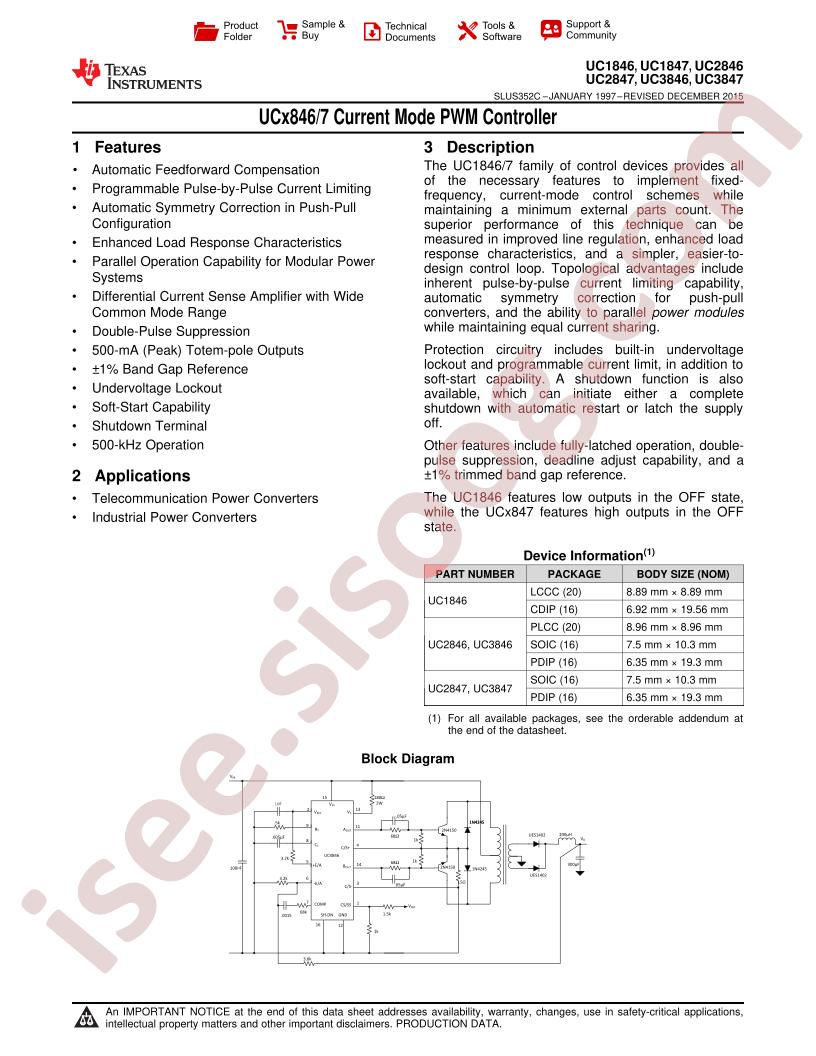

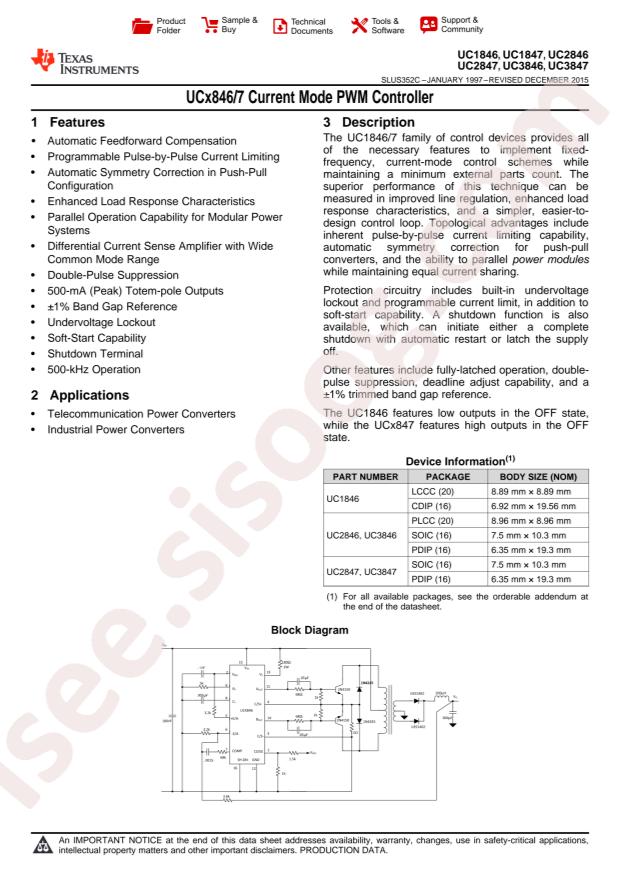

UC1846/7, UC2846/7, UC3846/7 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback;Half-Bridge;Push-pull
- Datasheet: Texas Instruments UC3846N
- Input Voltage: 6.95V~40V
- Duty Cycle (Max): 50%
- Number of Outputs: 2
- Switching Frequency: 500kHz
- Operating Temperature: 0°C~+70°C@(TA)
- Synchronous Rectification: Yes
- Package: DIP-16
- Manufacturer: Texas Instruments
- Part Status: Active
- Package / Case: 16-DIP (0.300", 7.62mm)
- Packaging: Tube
- Frequency - Switching: 500kHz
- Supplier Device Package: 16-PDIP
- Serial Interfaces: -
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Mounting Type: Through Hole
- Output Configuration: Positive
- Base Part Number: UC384
- Series: -
- Output Type: Transistor Driver
- Control Features: Current Limit, Enable, Frequency Control, Soft Start
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 6.95V ~ 40V
