دیتاشیت BC817-40
مشخصات دیتاشیت
| نام دیتاشیت | BC817-25, BC817-40 Preliminary |
|---|---|
| حجم فایل | 61.208 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت BC817-25, BC817-40 Preliminary |

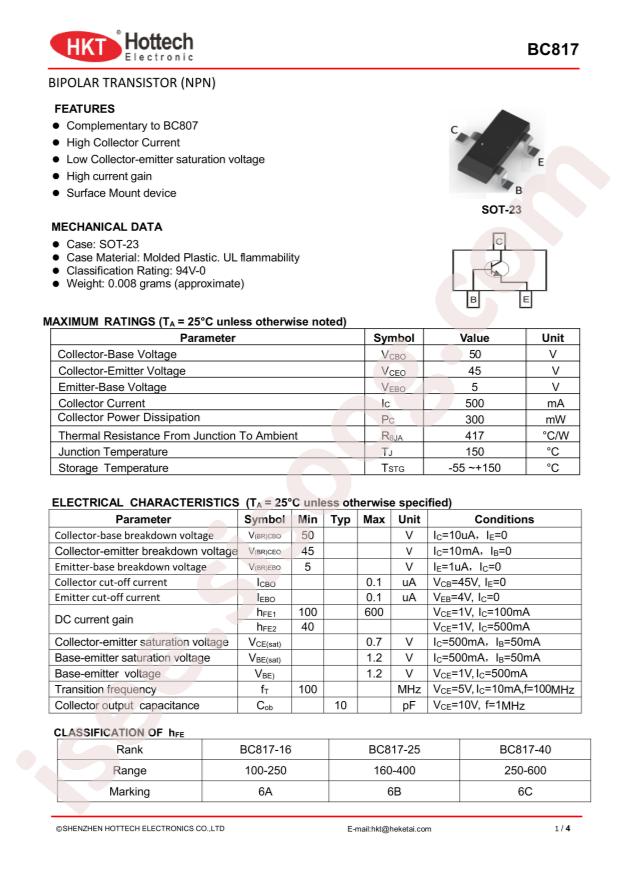

BC817-25, BC817-40 Preliminary Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: LGE BC817-40
- Transistor Type: NPN
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 500mA
- Power Dissipation (Pd): 300mW
- Transition Frequency (fT): 170MHz
- DC Current Gain (hFE@Ic,Vce): 250@100mA,1V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 45V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 700mV@500mA,50mA
- Package: SOT-23(TO-236)
- Manufacturer: LGE
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 45V
- Vce Saturation (Max) @ Ib, Ic: 700mV @ 50mA, 500mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 250 @ 100mA, 1V
- Power - Max: 250mW
- Frequency - Transition: 100MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
- Base Part Number: BC817
- detail: Bipolar (BJT) Transistor NPN 45V 500mA 100MHz 250mW Surface Mount SOT-23-3
