دیتاشیت CD4023BE
مشخصات دیتاشیت
| نام دیتاشیت | CD4011B, 12B, 23B |
|---|---|
| حجم فایل | 1346.023 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت CD4011B, 12B, 23B |

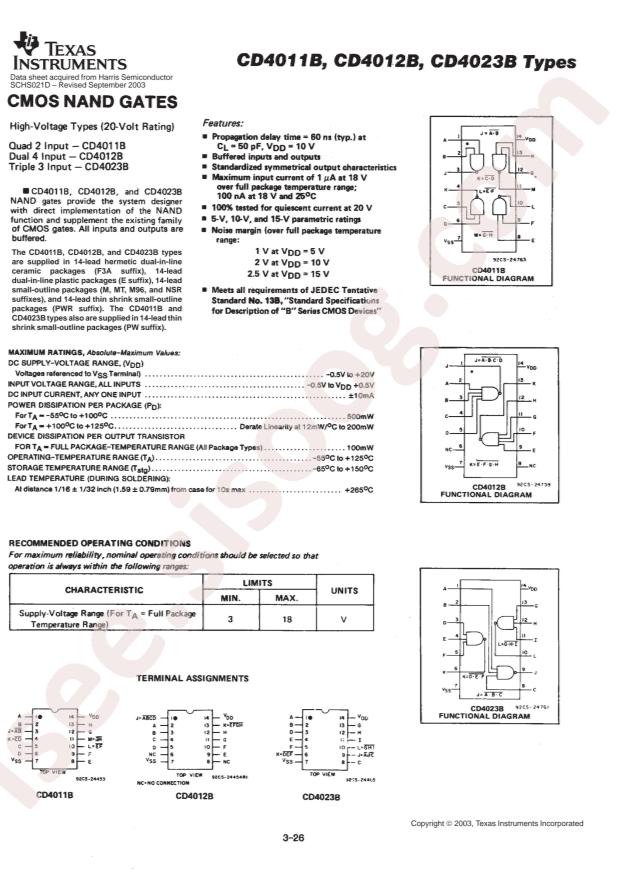

CD4011B, 12B, 23B Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 4000B
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments CD4023BE
- Sink Current: 3.4mA
- Source Current: 3.4mA
- Supply Voltage: 3V~18V
- Logic Gate Type: NAND Gates
- Number of Channels: 3
- Low Level Range (VIL): 1.5V~4V
- Operating Temperature: -55°C~+125°C
- High Level Range (VIH): 3.5V~11V
- Propagation Delay Time: 90ns@15V,50pF
- Quiescent Current (Max): 1uA
- Package: DIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 1.5V ~ 4V
- Current - Quiescent (Max): 1µA
- Voltage - Supply: 3V ~ 18V
- Number of Circuits: 3
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 3.5V ~ 11V
- Part Status: Active
- Current - Output High, Low: 3.4mA, 3.4mA
- Features: -
- Base Part Number: CD4023
- Supplier Device Package: 14-PDIP
- Number of Inputs: 3
- Logic Type: NAND Gate
- Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF
