دیتاشیت CD4001BE
مشخصات دیتاشیت

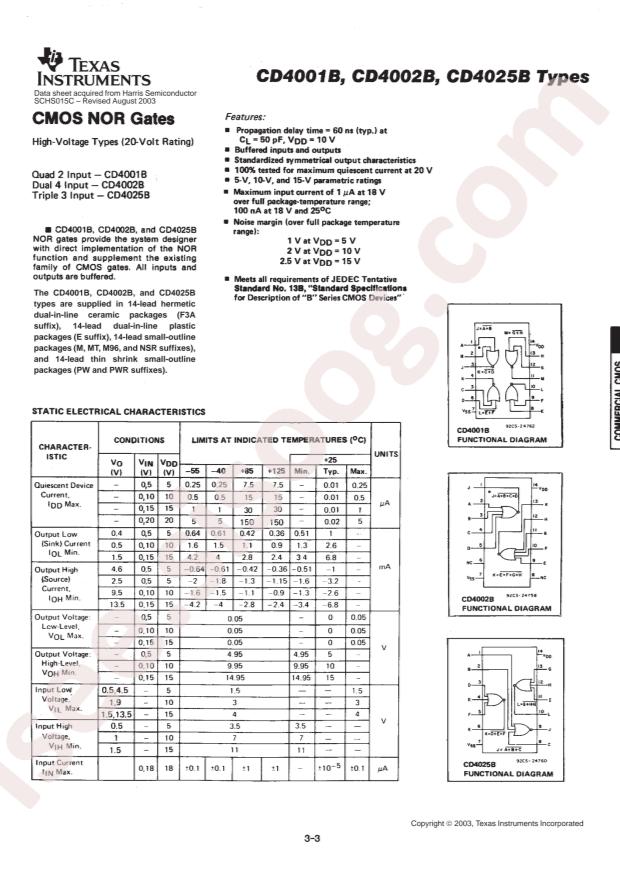

| نام دیتاشیت | CD4001B,02B,25B Types |
|---|---|
| حجم فایل | 1345.843 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت CD4001B,02B,25B Types |
CD4001B,02B,25B Types Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments CD4001BE
- Sink Current: 3.4mA
- Source Current: 3.4mA
- Supply Voltage: 3V~18V
- Logic Gate Type: NORGate
- Number of Channels: 4
- Low Level Range (VIL): 1.5V~4V
- Operating Temperature: -55°C~+125°C
- High Level Range (VIH): 3.5V~11V
- Propagation Delay Time: 90ns@15V,50pF
- Quiescent Current (Max): 1uA
- Package: DIP-14
- Manufacturer: Texas Instruments
- Supplier Device Package: 14-PDIP
- Base Part Number: CD4001
- Logic Type: NOR Gate
- Number of Circuits: 4
- Packaging: Tube
- Number of Inputs: 2
- Current - Output High, Low: 3.4mA, 3.4mA
- Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF
- Features: -
- Logic Level - High: 3.5V ~ 11V
- Package / Case: 14-DIP (0.300", 7.62mm)
- Current - Quiescent (Max): 1µA
- Mounting Type: Through Hole
- Part Status: Active
- Series: 4000B
- Voltage - Supply: 3V ~ 18V
- Logic Level - Low: 1.5V ~ 4V
