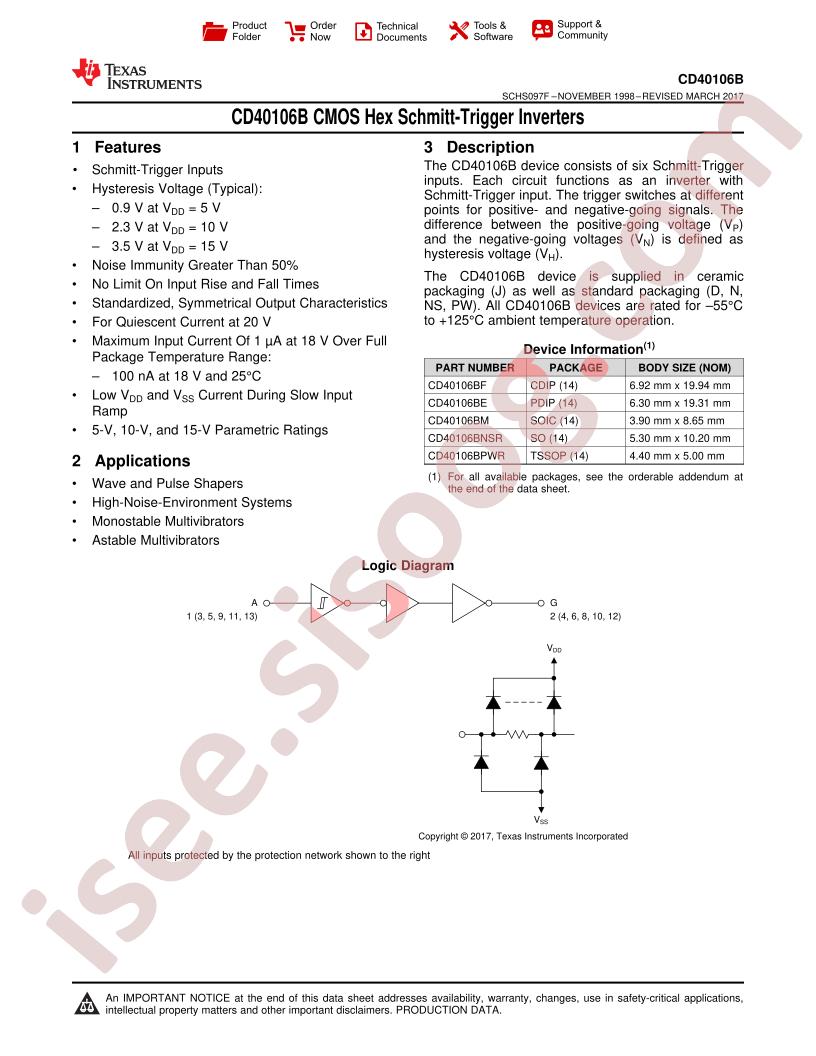

دیتاشیت CD40106BE
مشخصات دیتاشیت
| نام دیتاشیت |

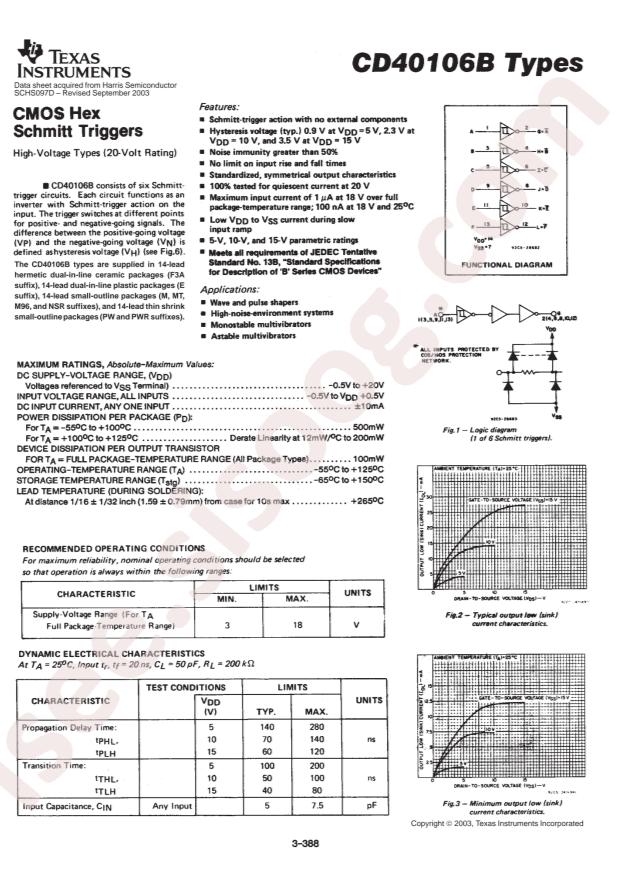

CD40106B Types
|
| حجم فایل |
1483.053
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Series:
4000B
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments CD40106BE
-
Input Type:
Schmitt Trigger
-
Sink Current:
3.4mA
-
Source Current:
3.4mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
4uA
-
Low level range (VIL):
0.9V~4V
-
Max Propagation Delay:
120ns@15V,50pF
-
Operating Temperature:
-55°C~+125°C
-
High level range (VIH):
3.6V~10.8V
-
Supply Voltage(Single):
3V~18V
-
Package:
DIP-14
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
14-PDIP
-
Base Part Number:
CD40106
-
Logic Type:
Inverter
-
Packaging:
Tube
-
Current - Output High, Low:
3.4mA, 3.4mA
-
Max Propagation Delay @ V, Max CL:
120ns @ 15V, 50pF
-
Features:
Schmitt Trigger
-
Logic Level - High:
3.6V ~ 10.8V
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Current - Quiescent (Max):
4µA
-
Mounting Type:
Through Hole
-
Part Status:
Active
-
Voltage - Supply:
3V ~ 18V
-
Logic Level - Low:
0.9V ~ 4V
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-PDIP
