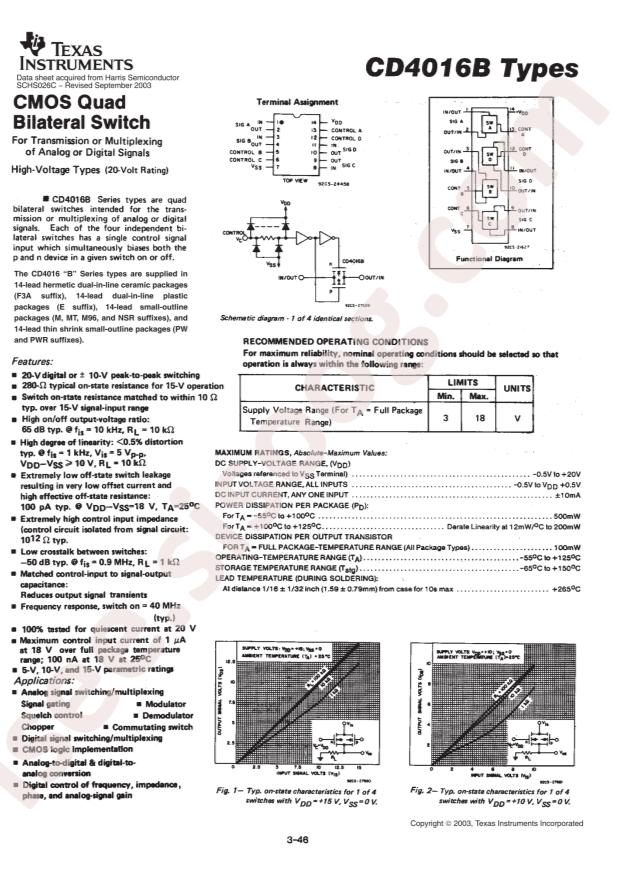

CD4016BE Datasheet

CD4016BE

Datasheet specifications

Datasheet's name CD4016BE
File size 114.019 KB
File type pdf
Number of pages 20

Download Datasheet CD4016BE

Download Datasheet

Other documentations

CD4016B Types 19 pages

Technical specifications

  • RoHS: true
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: Texas Instruments CD4016BE
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Independent Circuits: 4
  • Voltage Supply Source: Dual Supply
  • Voltage - Supply: 3V ~ 18V
  • Circuit: 1 x 1:1
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Type: Bilateral, FET Switches
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Current - Output High, Low: -
  • Series: 4000B
  • Supplier Device Package: 14-PDIP
  • Base Part Number: CD4016
