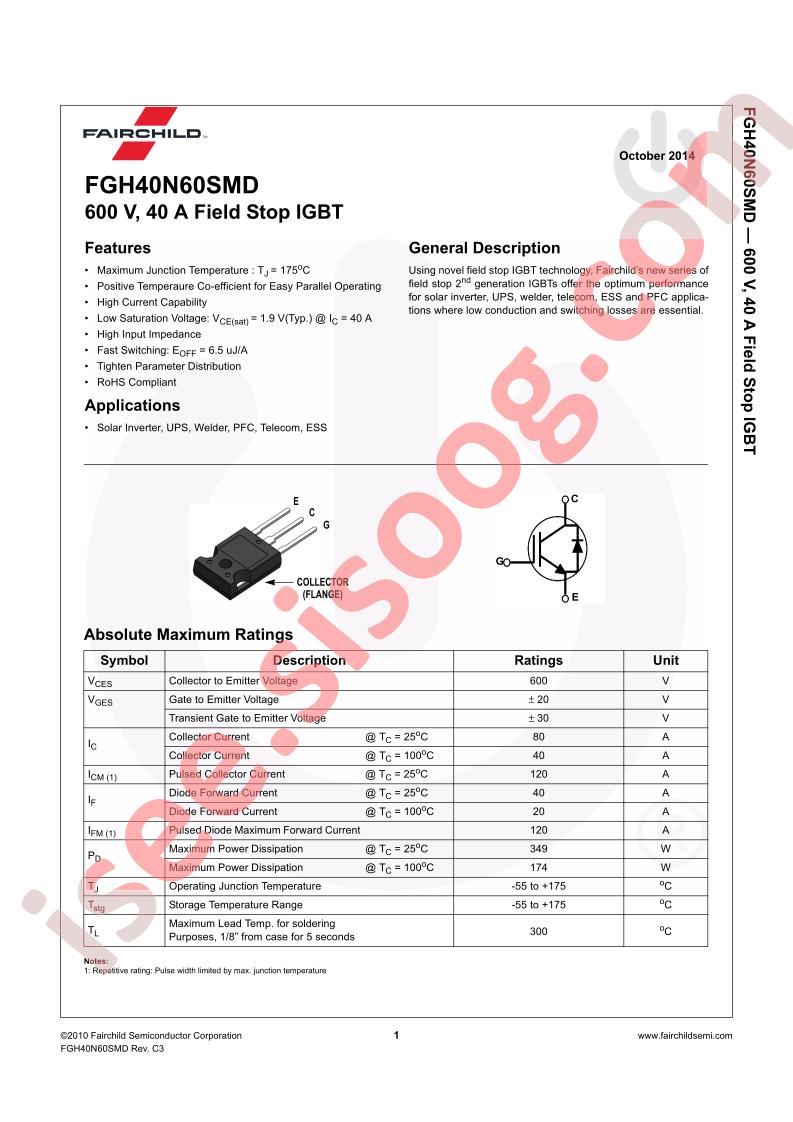

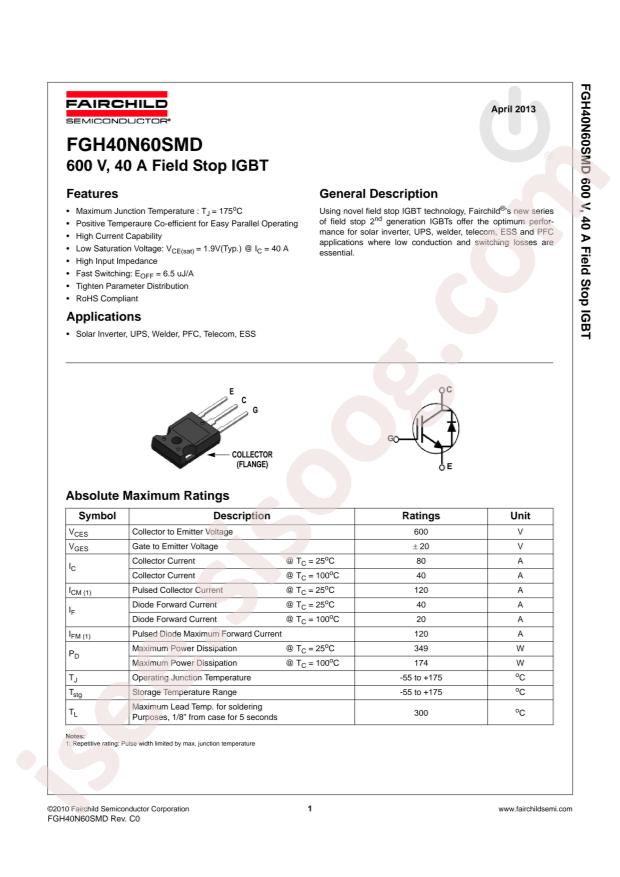

دیتاشیت FGH40N60SMD
مشخصات دیتاشیت
| نام دیتاشیت |
FGH40N60SMD
|
| حجم فایل |
821.714
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Type:
Field Stop
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
onsemi FGH40N60SMD
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Collector Current (Ic):
80A
-
Power Dissipation (Pd):
349W
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.87mJ
-
Pulsed Collector Current (Icm):
120A
-
Turn?off Switching Loss (Eoff):
0.26mJ
-
Diode Reverse Recovery Time (Trr):
36ns
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
120A
-
Vce(on) (Max) @ Vge, Ic:
2.5V @ 15V, 40A
-
Power - Max:
349W
-
Switching Energy:
870µJ (on), 260µJ (off)
-
Input Type:
Standard
-
Gate Charge:
119nC
-
Td (on/off) @ 25°C:
12ns/92ns
-
Test Condition:
400V, 40A, 6Ohm, 15V
-
Reverse Recovery Time (trr):
36ns
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
FGH40N60
-
detail:
IGBT Field Stop 600V 80A 349W Through Hole TO-247-3
