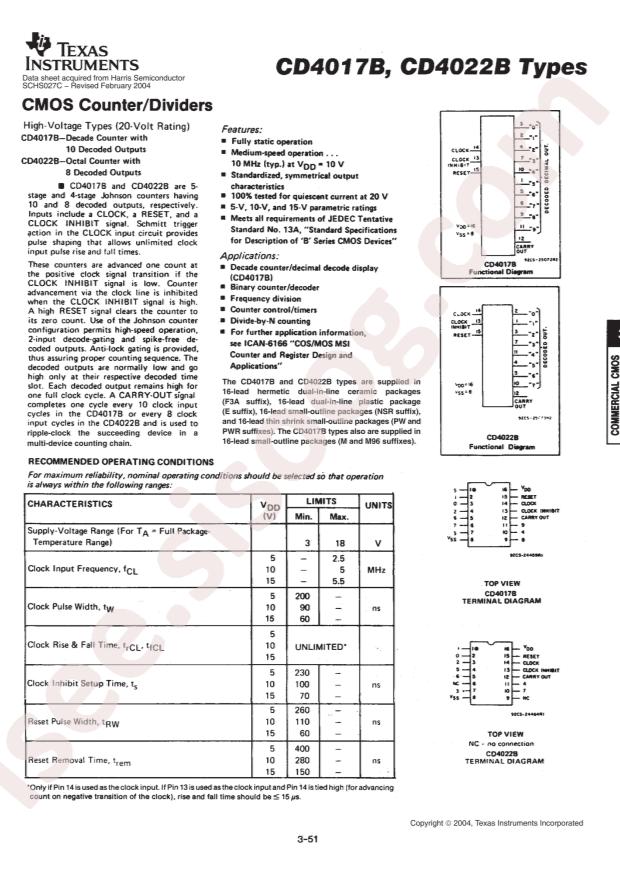

CD4017BE Datasheet
Datasheet specifications
| Datasheet's name | CD4017BE |
|---|---|
| File size | 103.321 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet CD4017BE |
Download Datasheet |
|---|
Other documentations
CD4017B,22B Types 20 pages
CD4017BE 11 pages
Technical specifications
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments CD4017BE
- Direction: 向上计数器
- Count Rate: 5.5MHz
- Logic Type: 十进制计数器
- Reset Style: Asynchronous
- Timing mode: Synchronous
- Trigger Type: Positive Edge
- Supply Voltage: 3V~18V
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 10
- Package: DIP-16
- Manufacturer: Texas Instruments
- Timing: Synchronous
- Reset: Asynchronous
- Voltage - Supply: 3V ~ 18V
- Part Status: Active
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Series: 4000B
- Supplier Device Package: 16-PDIP
- Base Part Number: CD4017
