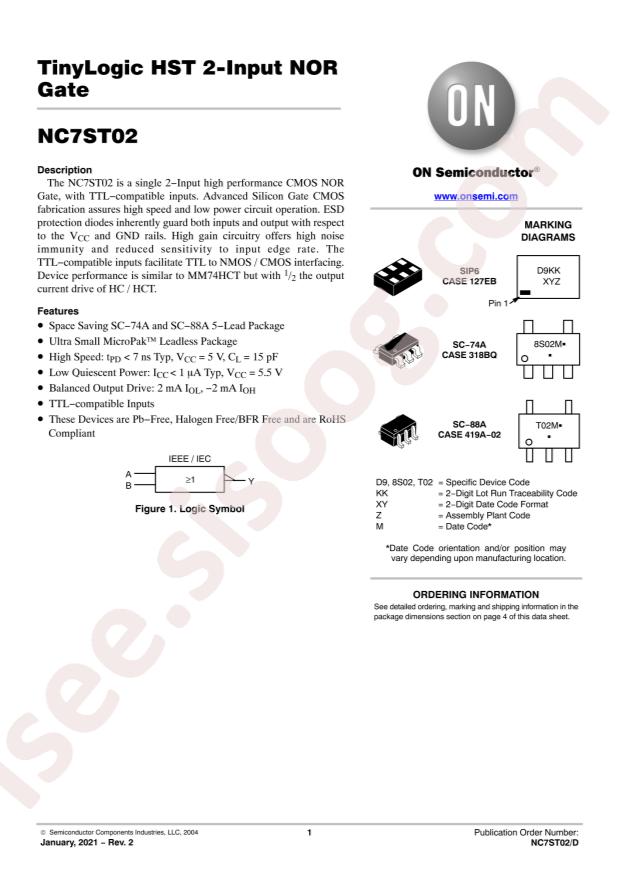

NC7ST02M5X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NC7ST02M5X
|
|
حجم فایل
|
64.492
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Series:
7ST
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi NC7ST02M5X
-
Sink Current:
2mA
-
Source Current:
2mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
NORGate
-
Number of Channels:
1
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
26ns@5.5V,50pF
-
Quiescent Current (Max):
1uA
-
Package:
SC-74A
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Logic Type:
NOR Gate
-
Number of Circuits:
1
-
Number of Inputs:
2
-
Features:
-
-
Voltage - Supply:
4.5V ~ 5.5V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
2mA, 2mA
-
Logic Level - Low:
0.8V
-
Logic Level - High:
2V
-
Max Propagation Delay @ V, Max CL:
26ns @ 5.5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-5
-
Package / Case:
SC-74A, SOT-753
-
Base Part Number:
NC7ST0
-
detail:
NOR Gate IC 1 Channel SOT-23-5
