دیتاشیت CC8520RHAT
مشخصات دیتاشیت
| نام دیتاشیت |
CC8520
|
| حجم فایل |
1049.165
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Data Rate:
5Mbps
-

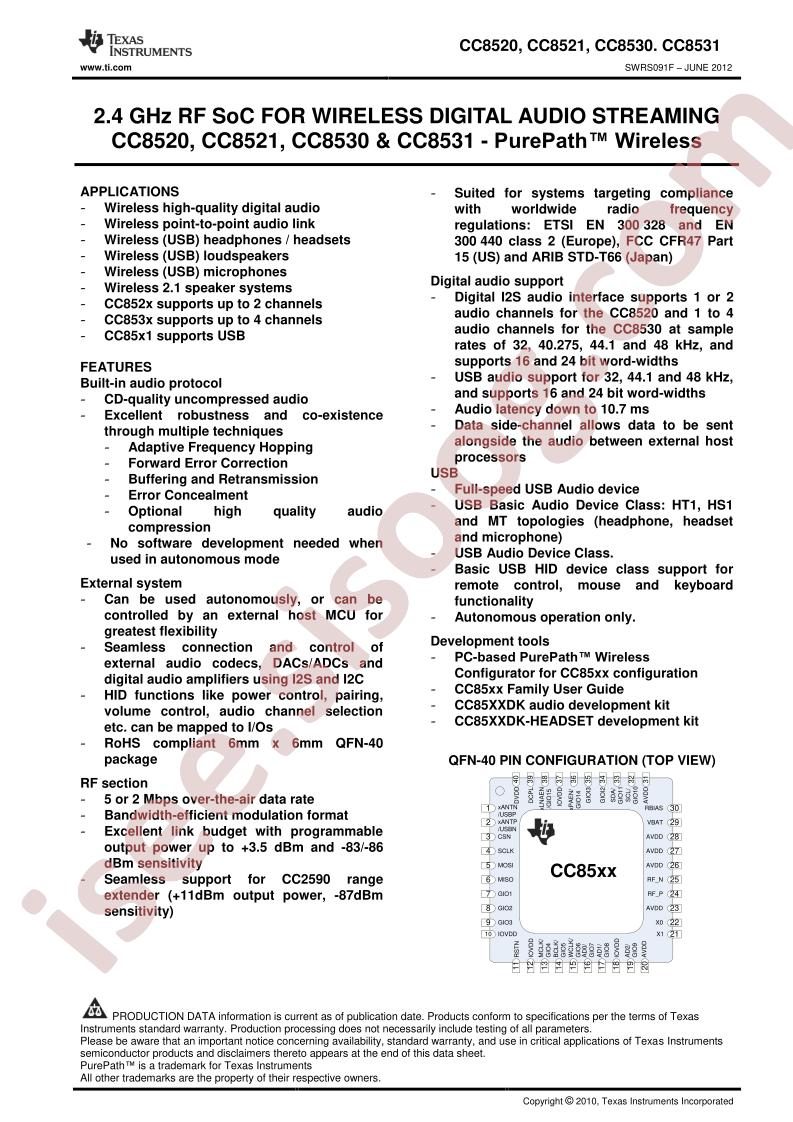

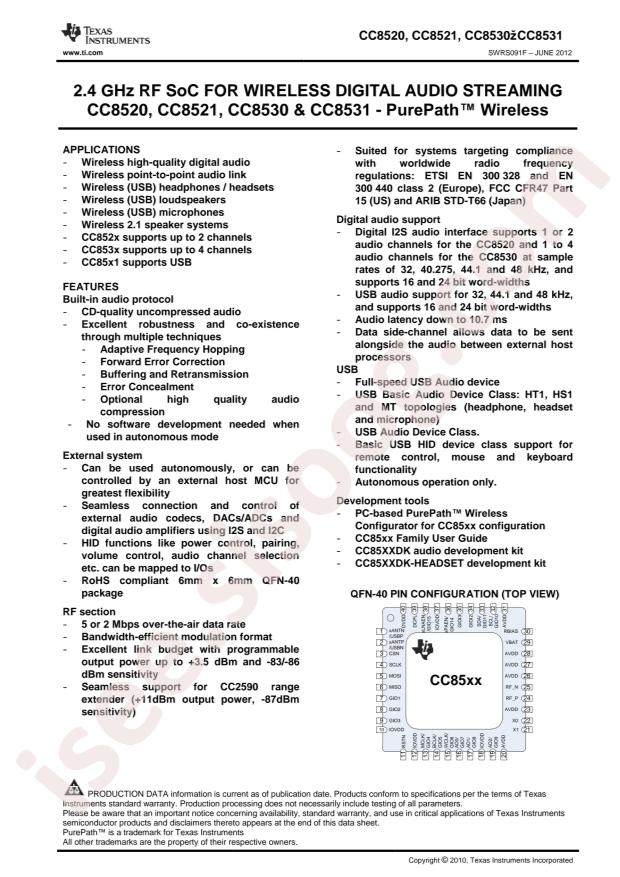

Datasheet:
Texas Instruments CC8520RHAT
-
Interface:
I2C,I2S,SPI
-
Applications:
General-purpose ISM>1GHz
-
Frequency Range:
2.4GHz
-
Operating Voltage:
2V~3.6V
-
Operating Temperature:
-40°C~+85°C
-
Package:
QFN-40-EP(6x6)
-
Manufacturer:
Texas Instruments
-
Current - Transmitting:
-
-
Voltage - Supply:
2V ~ 3.6V
-
Data Rate (Max):
5Mbps
-
Packaging:
Cut Tape (CT)
-
Type:
TxRx + MCU
-
Sensitivity:
-90dBm
-
GPIO:
15
-
Part Status:
Active
-
Protocol:
-
-
Supplier Device Package:
40-VQFN (6x6)
-
Modulation:
2FSK, 8FSK
-
RF Family/Standard:
General ISM > 1GHZ
-
Frequency:
2.4GHz
-
Serial Interfaces:
I²C, I²S, SPI
-
Current - Receiving:
-
-
Package / Case:
40-VFQFN Exposed Pad
-
Power - Output:
11dBm
-
Mounting Type:
Surface Mount
-
Memory Size:
-
-
Base Part Number:
CC8520
-
Series:
PurePath™ Wireless
-
detail:
IC RF TxRx + MCU General ISM > 1GHZ 2.4GHz 40-VFQFN Exposed Pad
