دیتاشیت NTJD4152PT1G
مشخصات دیتاشیت
| نام دیتاشیت |
NTJD4152P
|
| حجم فایل |
129.34
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

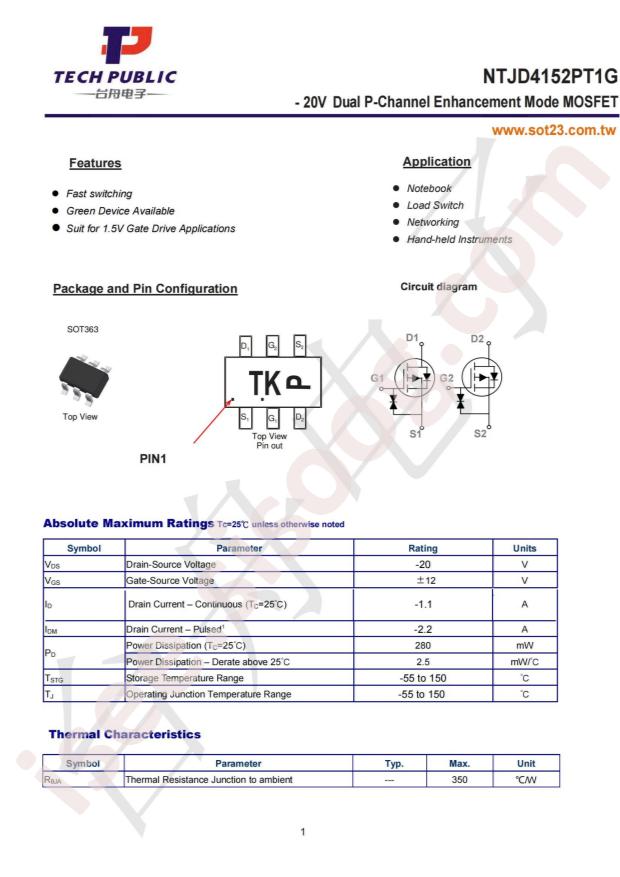

TECH PUBLIC NTJD4152PT1G
-
Package:
SOT-323-6
-
Manufacturer:
TECH PUBLIC
-
Type:
2 P-Channel
-
Power Dissipation (Pd):
272mW
-
Drain Source Voltage (Vdss):
20V
-
Continuous Drain Current (Id):
880mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1.2V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
260mΩ@4.5V,880mA
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
2 P-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
880mA
-
Rds On (Max) @ Id, Vgs:
260mOhm @ 880mA, 4.5V
-
Vgs(th) (Max) @ Id:
1.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
2.2nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
155pF @ 20V
-
Power - Max:
272mW
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Supplier Device Package:
SC-88/SC70-6/SOT-363
-
Base Part Number:
NTJD41
-
detail:
Mosfet Array 2 P-Channel (Dual) 20V 880mA 272mW Surface Mount SC-88/SC70-6/SOT-363
