ADP1850ACPZ-R7 数据手册
其他文档

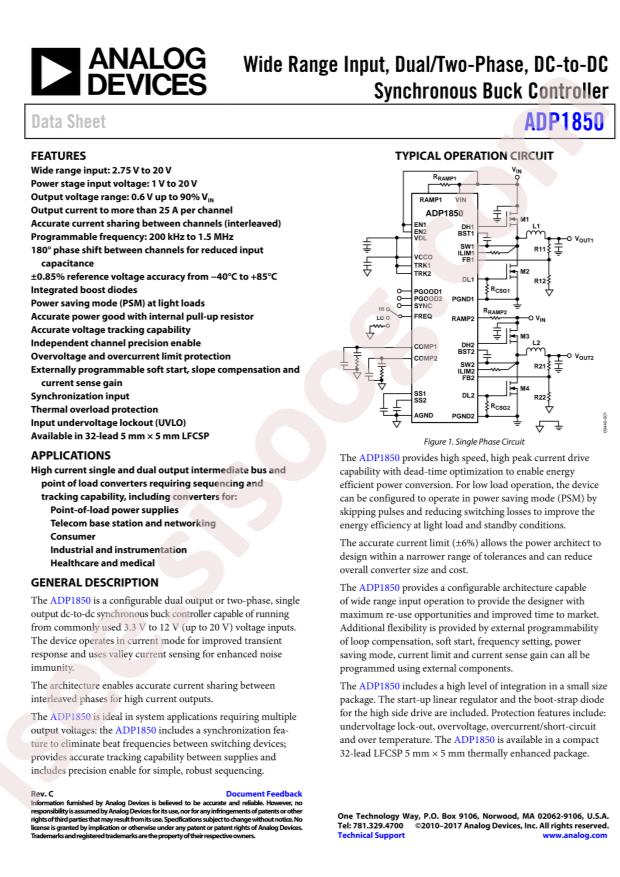

ADP1850 32 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices ADP1850ACPZ-R7
- Input Voltage: 2.75V~20V
- Duty Cycle (Max): 90%
- Number of Outputs: 2
- Switching Frequency: 1.5MHz
- Output Current (Max): 25A
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: LFCSP-32
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 2.75V ~ 20V
- Frequency - Switching: 200kHz ~ 1.5MHz
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
- Mounting Type: Surface Mount
- Package / Case: 32-VFQFN Exposed Pad, CSP
- Supplier Device Package: 32-LFCSP-VQ (5x5)
- Base Part Number: ADP1850
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-LFCSP-VQ (5x5)
