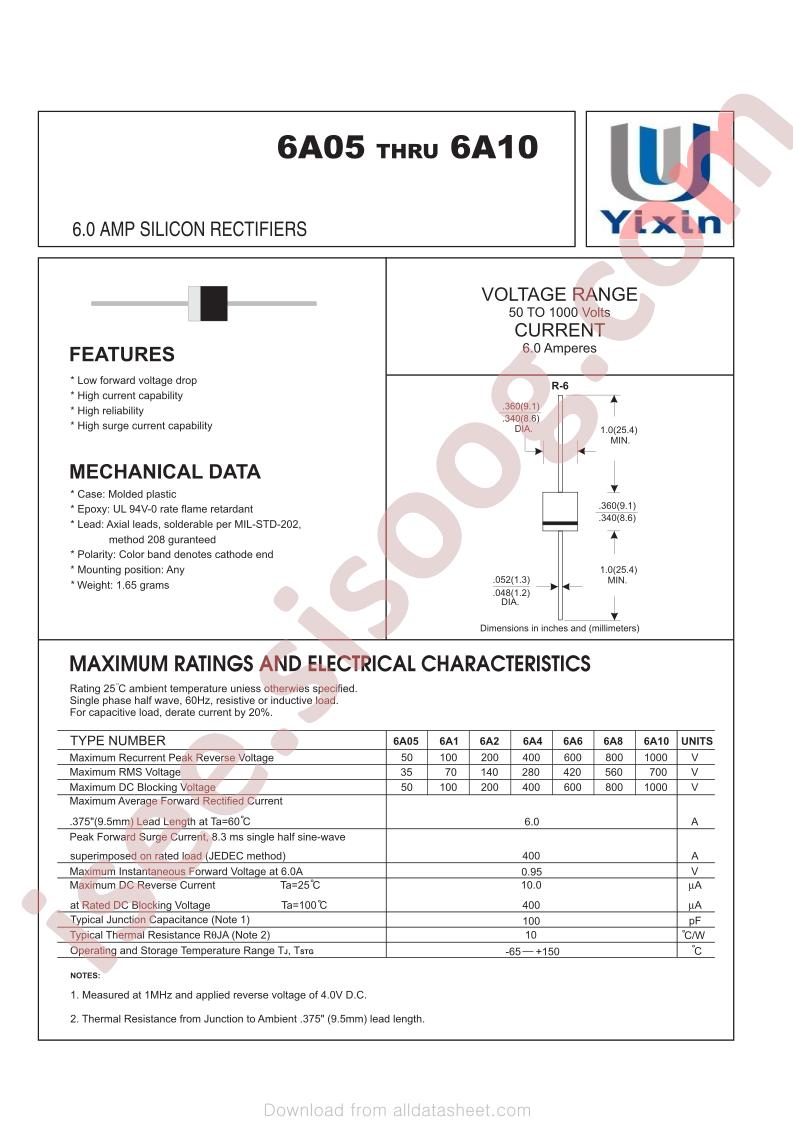

6A10 数据手册
技术规格
- RoHS: true
- Category: Diodes/Diodes - General Purpose
- Datasheet: YFW 6A10
- Diode Configuration: Single
- Reverse Voltage (Vr): 1kV
- Forward Voltage (Vf@If): 1.1V@6A
- Reverse Leakage Current: 10uA@1kV
- Average Rectified Current (Io): 6A
- Package: DO-27
- Manufacturer: YFW
- Operating Temperature: -65°C~+150°C@(Tj)
- Reverse Recovery Time (trr): -
- Reverse Leakage Current (Ir): 10uA@1kV
