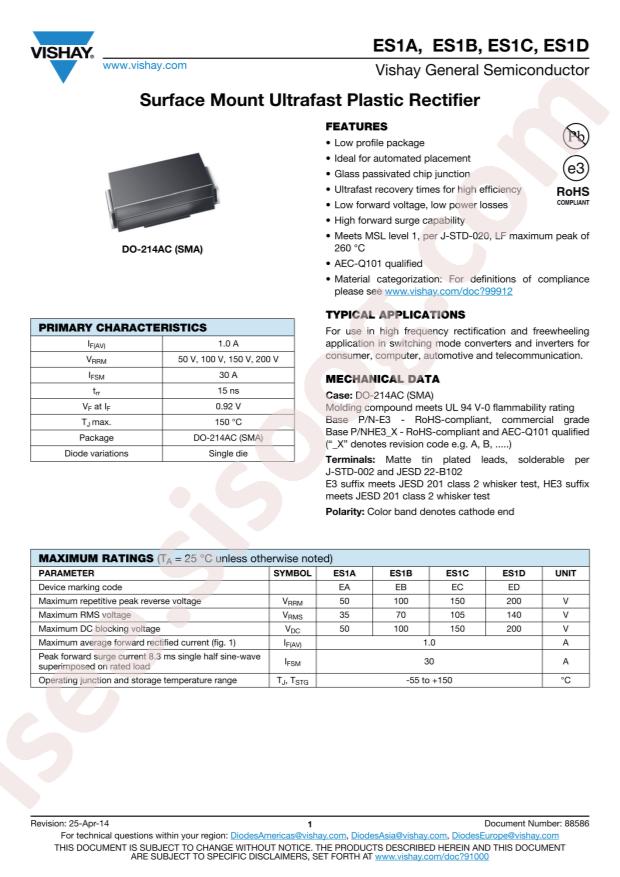

دیتاشیت ES1B-E3/61T
مشخصات دیتاشیت
| نام دیتاشیت |
ES1A - ES1D
|
| حجم فایل |
182.081
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
Vishay Intertech ES1B-E3/61T
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
100V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
920mV@1A
-
Reverse Leakage Current:
5uA@100V
-
Reverse Recovery Time (trr):
25ns
-
Average Rectified Current (Io):
1A
-
Package:
SMA(DO-214AC)
-
Manufacturer:
Vishay Intertech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
100V
-
Current - Average Rectified (Io):
1A
-
Voltage - Forward (Vf) (Max) @ If:
920mV @ 1A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
5µA @ 100V
-
Capacitance @ Vr, F:
7pF @ 4V, 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AC, SMA
-
Supplier Device Package:
SMA (DO-214AC)
-
Operating Temperature - Junction:
-55°C ~ 150°C
-
Base Part Number:
ES1
-
detail:
Diode Standard 100V 1A Surface Mount SMA (DO-214AC)
