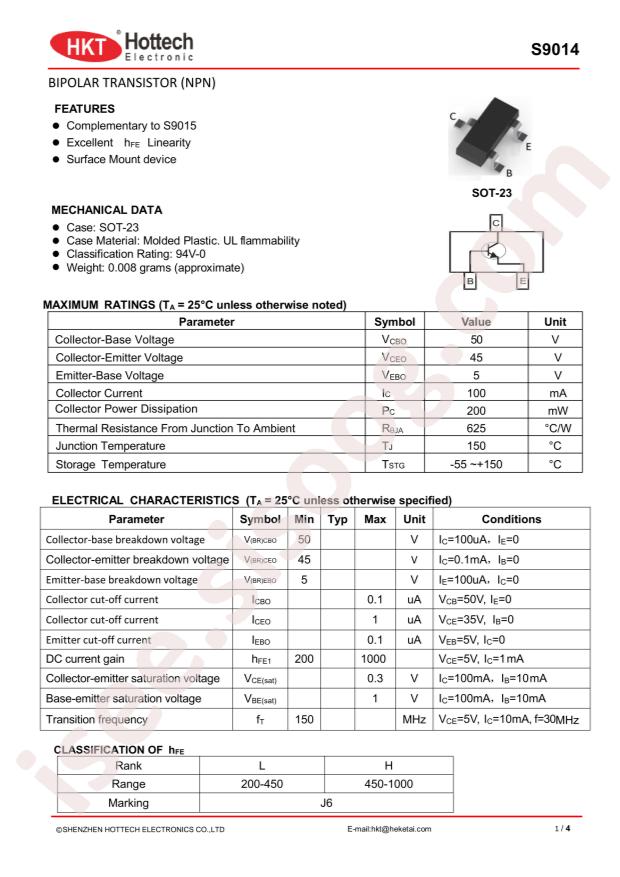

دیتاشیت S9014
مشخصات دیتاشیت
| نام دیتاشیت |
S9014
|
| حجم فایل |
85.563
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Shandong Jingdao Microelectronics S9014
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
100mA
-
Power Dissipation (Pd):
200mW
-
Transition Frequency (fT):
150MHz
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
45V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
300mV@100mA,5mA
-
Package:
SOT-23
-
Manufacturer:
Shandong Jingdao Microelectronics
-
DC Current Gain (hFE@Ic,Vce):
200@1mA,5V
