دیتاشیت ADG419BRZ

ADG419

مشخصات دیتاشیت

نام دیتاشیت ADG419
حجم فایل 318.642 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

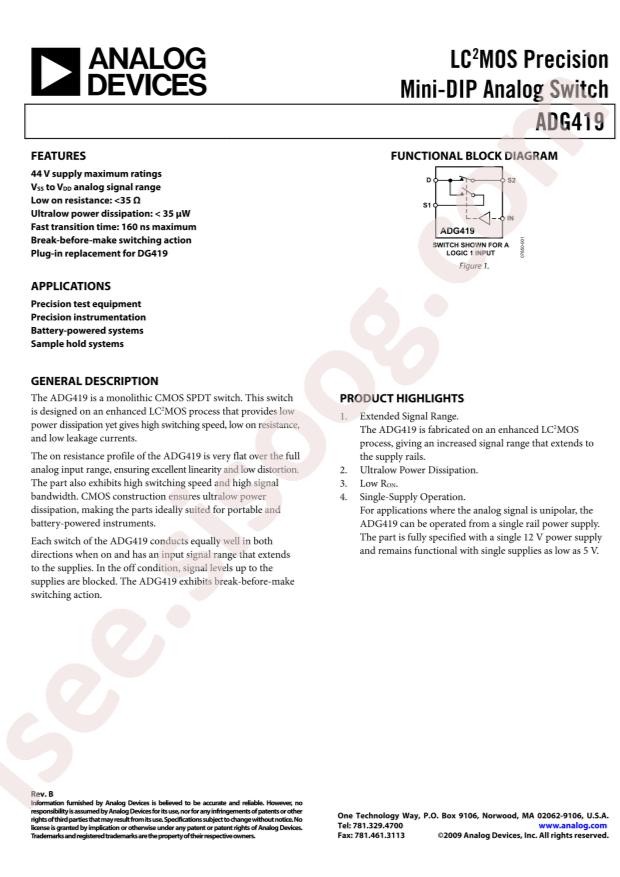

دانلود دیتاشیت ADG419

ADG419 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Number of Circuits: 1
  • On-State Resistance (Max): 35Ohm
  • Channel-to-Channel Matching (ΔRon): -
  • Voltage - Supply, Single (V+): 12V
  • Voltage - Supply, Dual (V±): ±15V
  • Switch Time (Ton, Toff) (Max): -
  • -3db Bandwidth: -
  • Charge Injection: -
  • Channel Capacitance (CS(off), CD(off)): 6pF
  • Current - Leakage (IS(off)) (Max): 250pA
  • Crosstalk: -90dB @ 1MHz
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: ADG419
  • detail: 1 Circuit IC Switch 2:1 35Ohm 8-SOIC
