دیتاشیت LP2980AIM5-3.3

LP2980 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LP2980 Datasheet
حجم فایل 1484.469 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LP2980 Datasheet

LP2980 Datasheet Datasheet

مشخصات

  • Voltage - Input (Max): 16V
  • Packaging: Cut Tape (CT)
  • Series: -
  • Current - Quiescent (Iq): 95µA
  • Current - Supply (Max): 1.2mA
  • Voltage - Output (Min/Fixed): 3.3V
  • Number of Regulators: 1
  • PSRR: 63dB (1kHz)

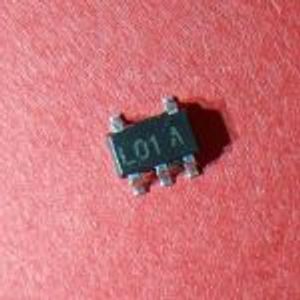

  • Supplier Device Package: SOT-23-5
  • Package / Case: SC-74A, SOT-753
  • Control Features: Enable
  • Part Status: Not For New Designs
  • Base Part Number: LP2980
  • Voltage Dropout (Max): 0.22V @ 50mA
  • Operating Temperature: -40°C ~ 125°C
  • Current - Output: 50mA
  • Output Configuration: Positive
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Voltage - Output (Max): -
  • Output Type: Fixed
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • detail: Linear Voltage Regulator IC 1 Output 50mA SOT-23-5
