دیتاشیت L6386ED

L6386E

مشخصات دیتاشیت

نام دیتاشیت L6386E
حجم فایل 411.756 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

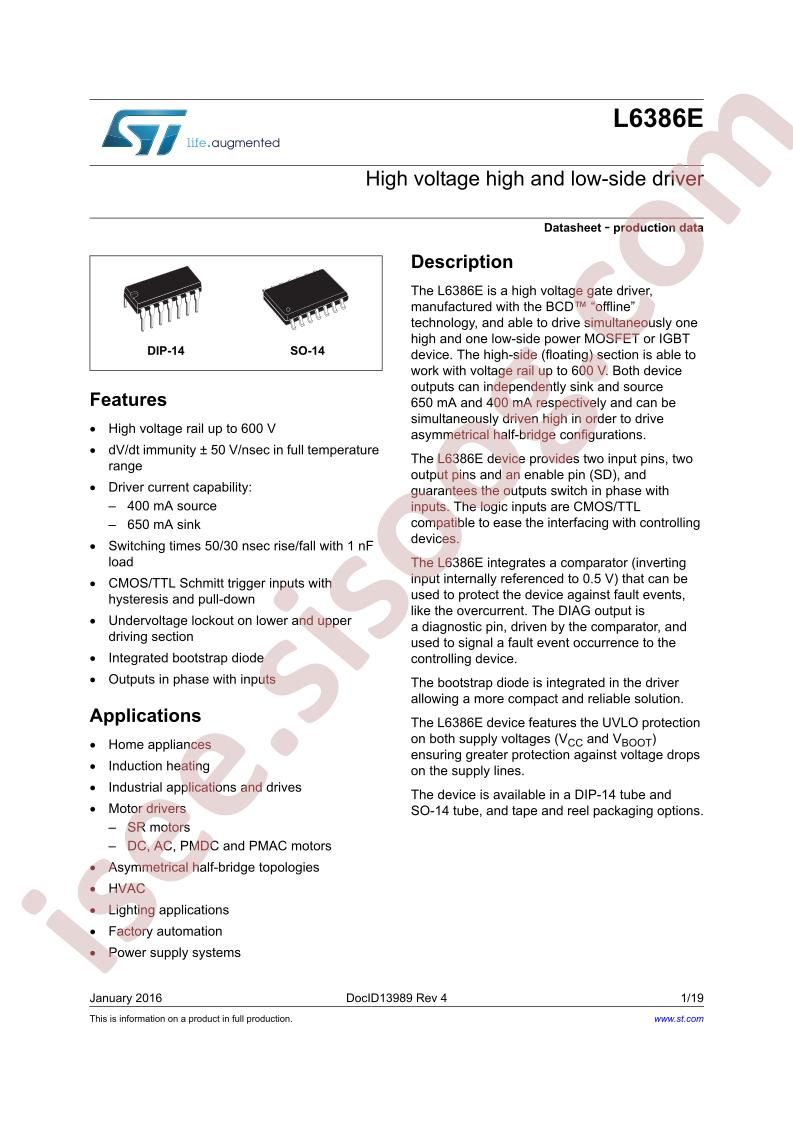

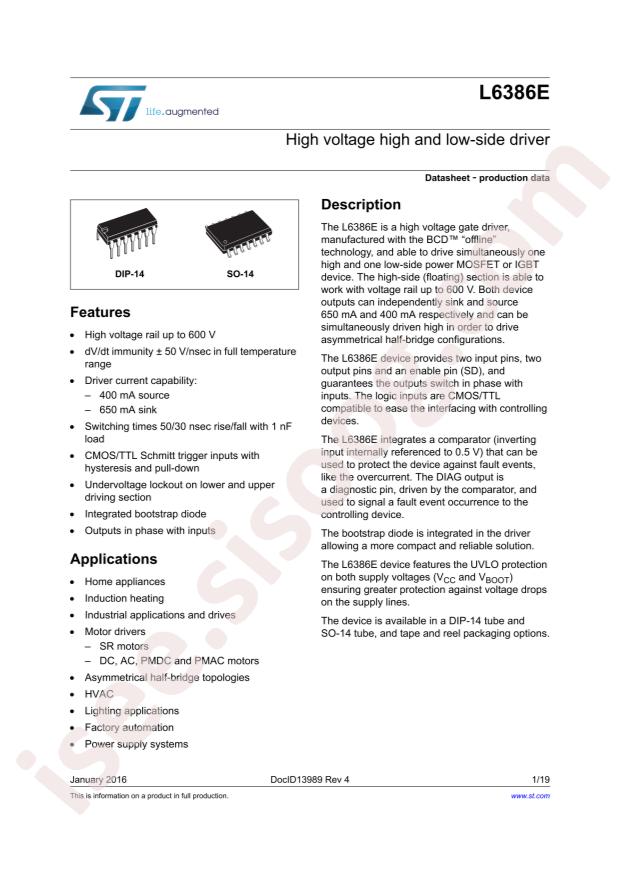

دانلود دیتاشیت L6386E

L6386E Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: STMicroelectronics L6386ED
  • Fall Time: 30ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 50ns
  • Supply Voltage: 17V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 650mA
  • Peak Output Current(source): 400mA
  • Package: SOP-14
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Channel Type: Independent
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 17V (Max)
  • Logic Voltage - VIL, VIH: 1.5V, 3.6V
  • Current - Peak Output (Source, Sink): 400mA, 650mA
  • Input Type: Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 50ns, 30ns
  • Mounting Type: Through Hole
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Supplier Device Package: 14-DIP
  • Base Part Number: L6386
  • detail: Half-Bridge Gate Driver IC Inverting 14-DIP
