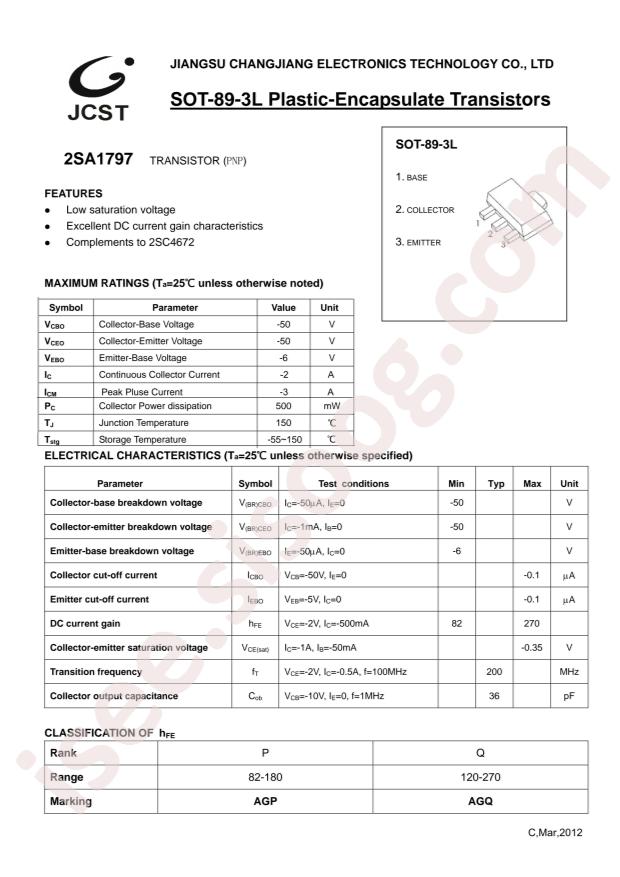

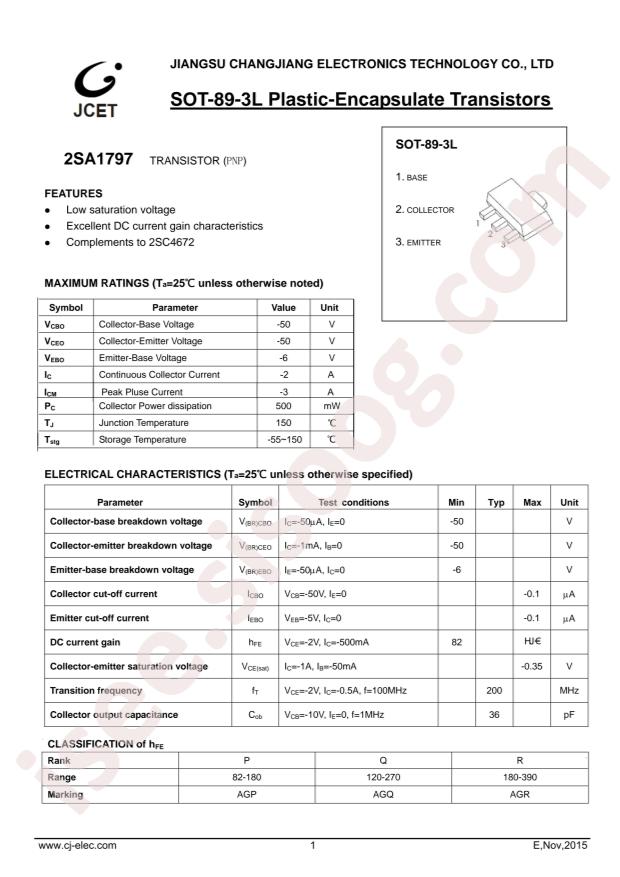

دیتاشیت 2SA1797
مشخصات دیتاشیت
نام دیتاشیت |
2SA1797
|
حجم فایل |
81.185
کیلوبایت
|
نوع فایل |
pdf
|
تعداد صفحات |
2
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. 2SA1797
-
Transistor Type:
PNP
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
2A
-
Power Dissipation (Pd):
500mW
-
Transition Frequency (fT):
200MHz
-
DC Current Gain (hFE@Ic,Vce):
120@500mA,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
350mV@1A,50mA
-
Package:
SOT-89-3
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
