دیتاشیت 1.5KE6.8A

1.5KE6.8A

مشخصات دیتاشیت

نام دیتاشیت 1.5KE6.8A
حجم فایل 374.771 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت 1.5KE6.8A

1.5KE6.8A Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS

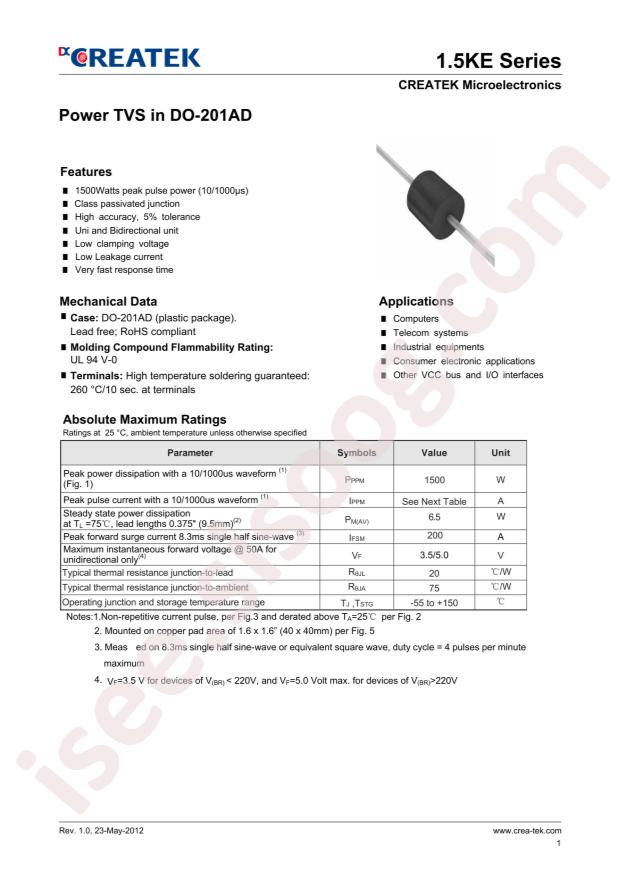

  • Datasheet: CREATEK 1.5KE6.8A
  • Breakdown Voltage: 6.45V
  • Maximum Clamping Voltage: 10.5V
  • Reverse Stand-Off Voltage (Vrwm): 5.8V
  • Peak Pulse Current (Ipp)@10/1000us: 143A
  • Package: DO-27
  • Manufacturer: CREATEK
  • Series: Mosorb™
  • Packaging: Bulk
  • Part Status: Obsolete
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 5.8V
  • Voltage - Breakdown (Min): 6.45V
  • Voltage - Clamping (Max) @ Ipp: 10.5V
  • Current - Peak Pulse (10/1000µs): 143A
  • Power - Peak Pulse: 1500W (1.5kW)
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -65°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: DO-201AD, Axial
  • Supplier Device Package: Axial
  • Base Part Number: 1.5KE
  • detail: 10.5V Clamp 143A Ipp Tvs Diode Through Hole Axial
