دیتاشیت 1SS387
مشخصات دیتاشیت
| نام دیتاشیت |

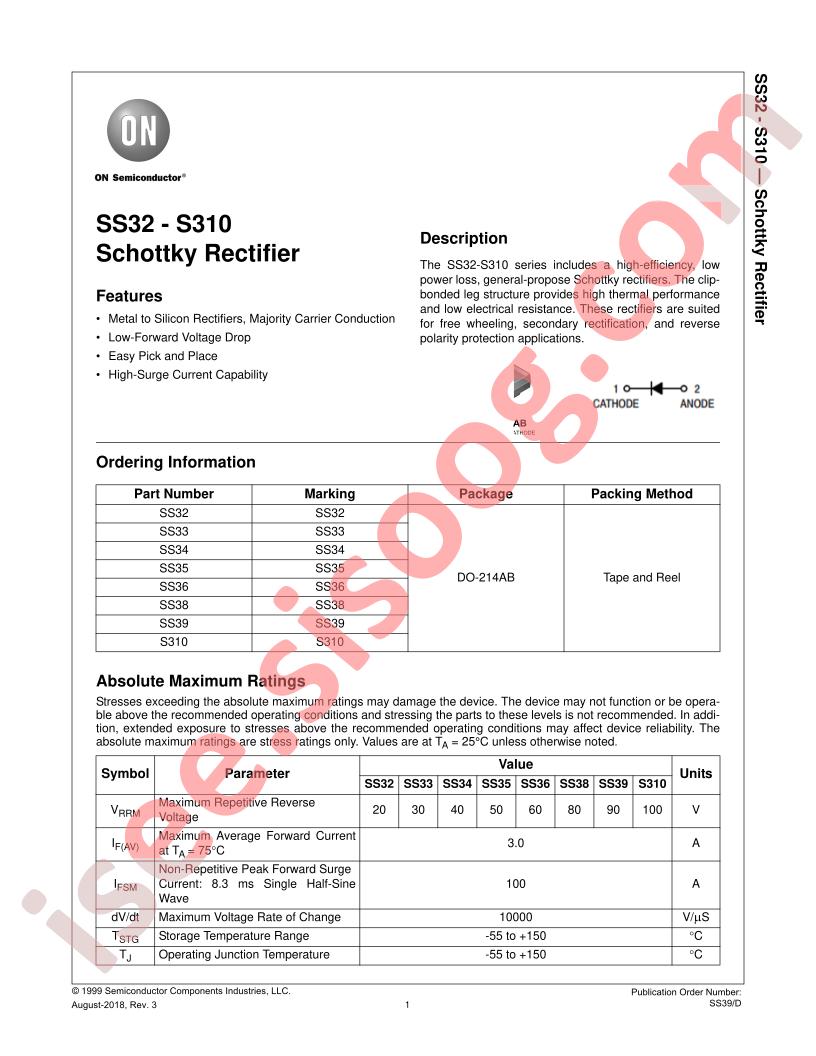

SS32 - S310
|
| حجم فایل |
434.621
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Switching Diode
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. 1SS387
-
Power Dissipation:
150mW
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
80V
-
Operating Temperature:
+150°C@(Tj)
-
Forward Voltage (Vf@If):
1.2V@100mA
-
Reverse Leakage Current:
500nA@80V
-
Reverse Recovery Time (trr):
4ns
-
Average Rectified Current (Io):
100mA
-
Package:
SOD-523
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
80V
-
Current - Average Rectified (Io):
3A
-
Voltage - Forward (Vf) (Max) @ If:
850mV @ 3A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
500µA @ 80V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AB, SMC
-
Supplier Device Package:
SMC (DO-214AB)
-
Operating Temperature - Junction:
-55°C ~ 150°C
-
Base Part Number:
SS38
-
detail:
Diode Schottky 80V 3A Surface Mount SMC (DO-214AB)
