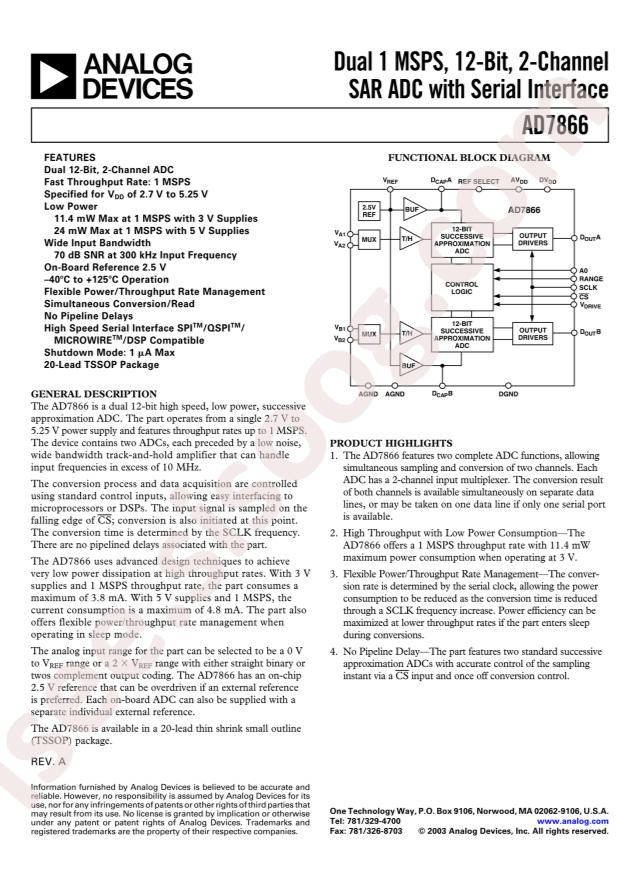

دیتاشیت AD7866ARUZ
مشخصات دیتاشیت
| نام دیتاشیت | AD7866ARUZ |
|---|---|
| حجم فایل | 119.123 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
AD7866ARUZ |
دانلود دیتاشیت |
|---|
سایر مستندات
20-TSSOP Pkg Drawing 1 pages
AD7866 24 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7866ARUZ
- Interface: SPI;DSP
- resolution: 12Bit
- Supply Voltage: 2.7V~5.25V
- number of channels: 4
- sampling frequency: 1MHz
- Operating Temperature: -40°C~+125°C
- Package: TSSOP-20
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Number of Bits: 12
- Sampling Rate (Per Second): 1M
- Number of Inputs: 4
- Input Type: Single Ended
- Data Interface: SPI, DSP
- Configuration: MUX-S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 2
- Architecture: SAR
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.7V ~ 5.25V
- Voltage - Supply, Digital: 2.7V ~ 5.25V
- Features: Simultaneous Sampling
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 20-TSSOP
- Mounting Type: Surface Mount
- Base Part Number: AD7866
- detail: 12 Bit Analog to Digital Converter 4 Input 2 SAR 20-TSSOP
