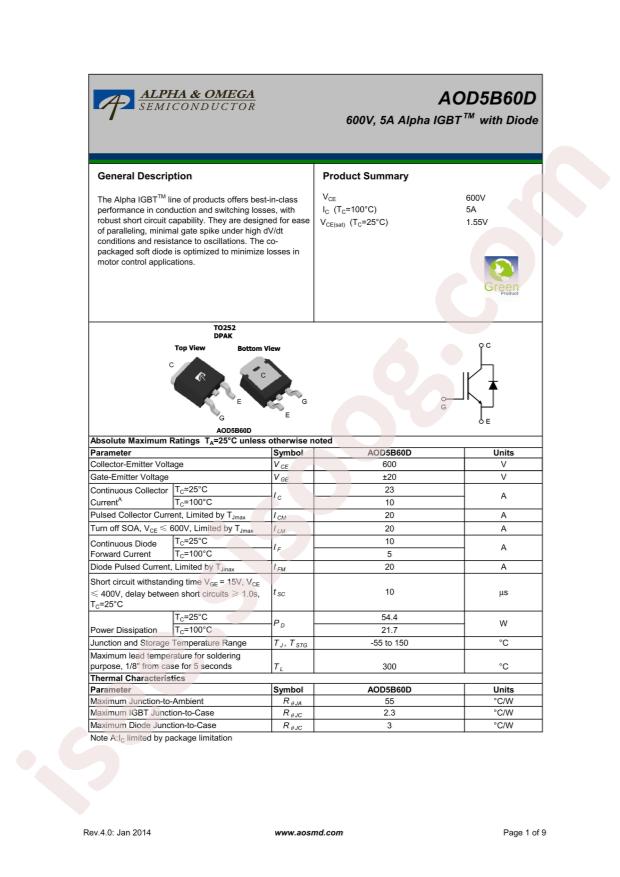

AOD5B60D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AOD5B60D
|
|
حجم فایل
|
68.091
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Alpha & Omega Semicon AOD5B60D
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
23A
-
Power Dissipation (Pd):
54.4W
-
Turn?on Delay Time (Td(on)):
12ns
-
Input Capacitance (Cies@Vce):
367pF@25V
-
Turn?on Switching Loss (Eon):
0.14mJ
-
Diode Forward Voltage (Vf@If):
1.46V@5A
-
Total Gate Charge (Qg@Ic,Vge):
9.4nC@5A,15V
-
Turn?off Delay Time (Td(off)):
82ns
-
Pulsed Collector Current (Icm):
20A
-
Turn?off Switching Loss (Eoff):
0.04mJ
-
Diode Reverse Recovery Time (Trr):
98ns
-
Collector Cut-Off Current (Ices@Vce):
10uA@600V
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@1mA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge):
1.55V@15A,15V
-
Package:
TO-252
-
Manufacturer:
Alpha & Omega Semicon
