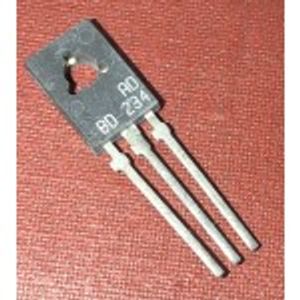

دیتاشیت BD234 TO-126

BD234,237,238

مشخصات دیتاشیت

نام دیتاشیت BD234,237,238
حجم فایل 89.432 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت BD234,237,238

BD234,237,238 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Bulk
  • Part Status: Obsolete
  • Transistor Type: PNP
  • Current - Collector (Ic) (Max): 2A
  • Voltage - Collector Emitter Breakdown (Max): 45V
  • Vce Saturation (Max) @ Ib, Ic: 600mV @ 100mA, 1A
  • Current - Collector Cutoff (Max): 100µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 25 @ 1A, 2V
  • Power - Max: 25W
  • Frequency - Transition: 3MHz
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-225AA, TO-126-3
  • Supplier Device Package: TO-225AA
  • Base Part Number: BD234
  • detail: Bipolar (BJT) Transistor PNP 45V 2A 3MHz 25W Through Hole TO-225AA
