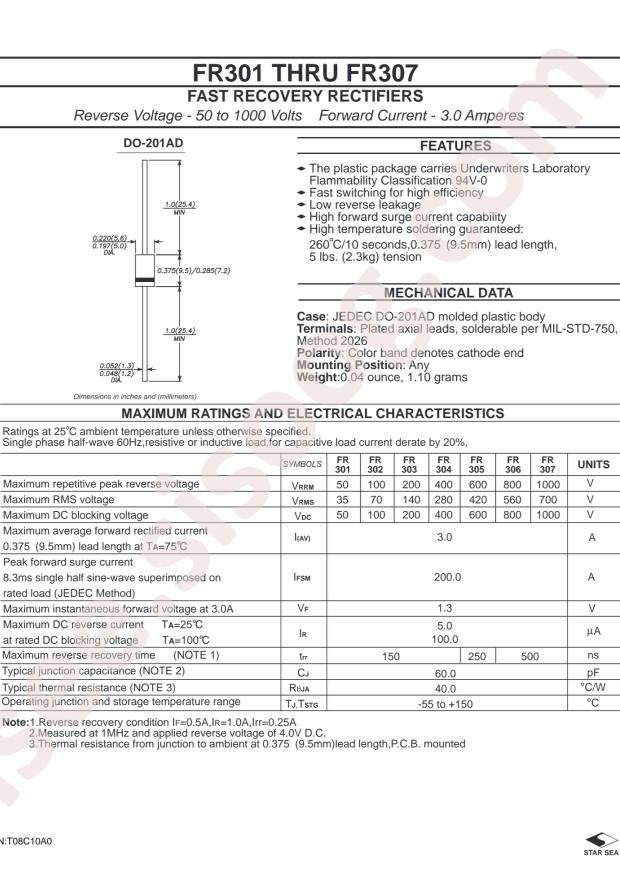

FR307 数据手册
技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: EIC Semicon FR307
- Reverse Voltage (Vr): 1kV
- Operating Temperature: -65°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.3V@3A
- Reverse Leakage Current: 10uA@1kV
- Reverse Recovery Time (trr): 500ns
- Average Rectified Current (Io): 3A
- Package: DO-201AD
- Manufacturer: EIC Semicon
- Diode Configuration: Single
