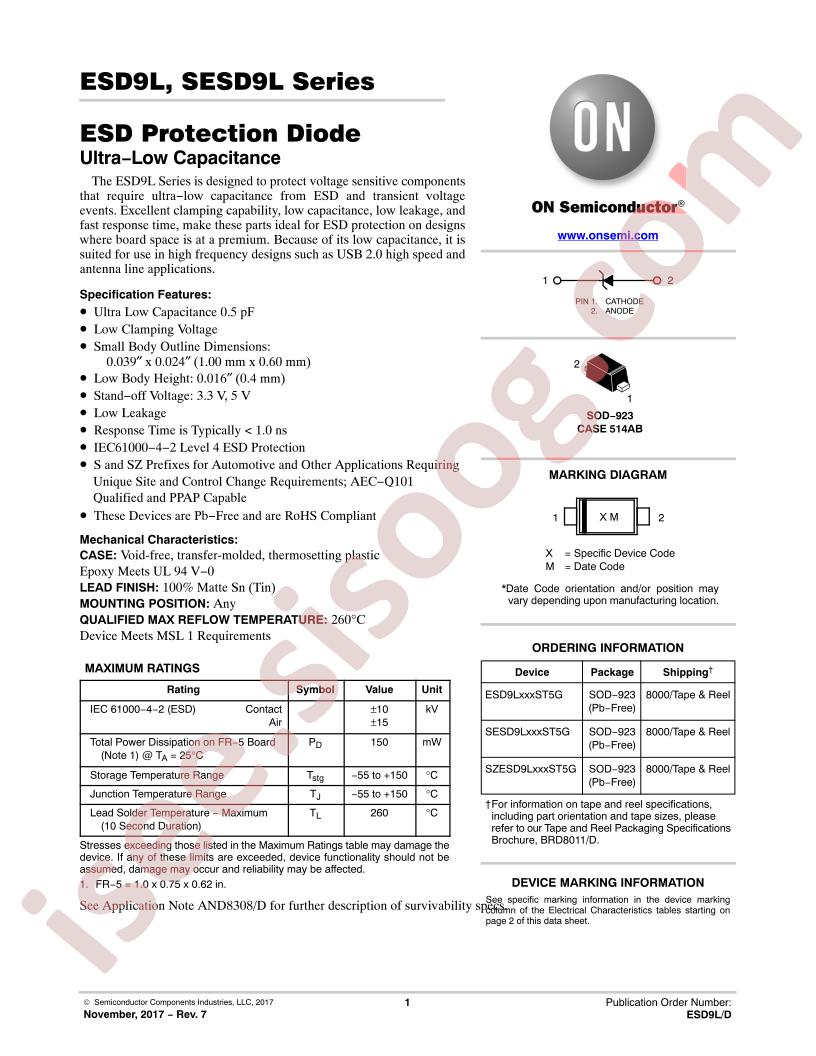

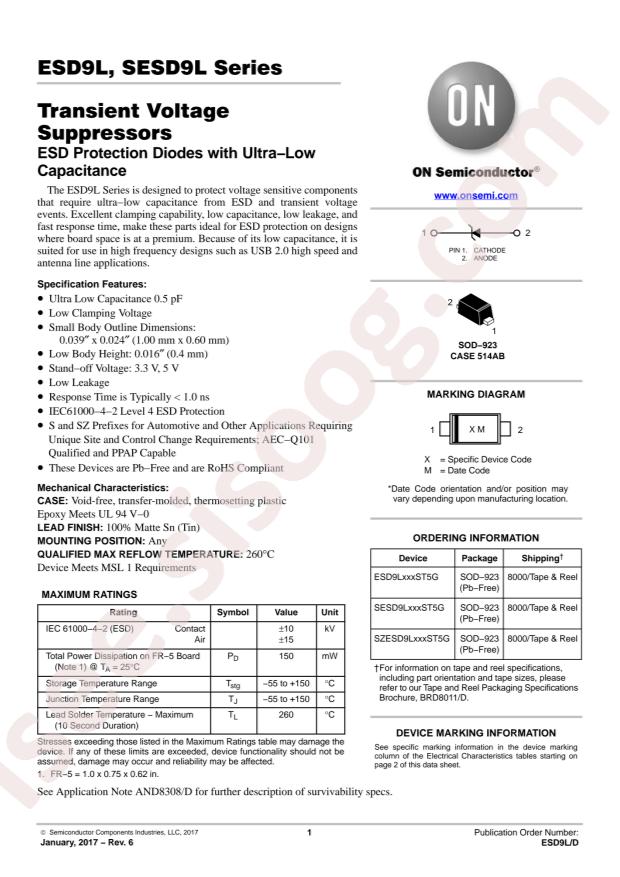

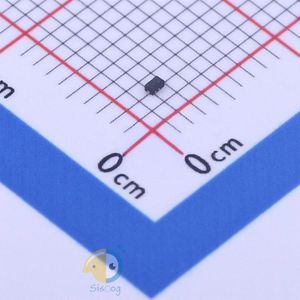

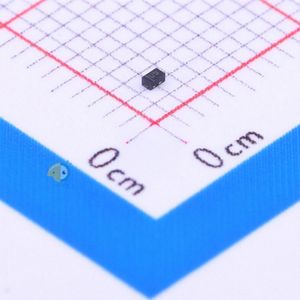

دیتاشیت ESD9L5.0ST5G
مشخصات دیتاشیت
| نام دیتاشیت |
ESD9L
|
| حجم فایل |
142.964
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Polarity:
Unidirectional
-
Datasheet:
onsemi ESD9L5.0ST5G
-
Clamping Voltage@Ipp:
9.8V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Breakdown Voltage (VBR):
5.4V
-
Peak Pulse Power(Ppp)@8/20us:
-
-
Junction Capacitance(Cj)@1MHz:
0.5pF@1MHz
-
Peak Pulse Current(Ipp)@8/20us:
1A
-
Reverse Stand-Off Voltage (Vrwm):
5V
-
Package:
SOD-923-2
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Unidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
5V (Max)
-
Voltage - Breakdown (Min):
5.4V
-
Voltage - Clamping (Max) @ Ipp:
9.8V
-
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
-
Power - Peak Pulse:
-
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
0.5pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
SOD-923
-
Supplier Device Package:
SOD-923
-
Base Part Number:
ESD9
-
detail:
9.8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
