دیتاشیت GBPC3510W-E4/51
مشخصات دیتاشیت
| نام دیتاشیت | GBPC12/15/25/35 Series |
|---|---|
| حجم فایل | 309.799 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت GBPC12/15/25/35 Series |

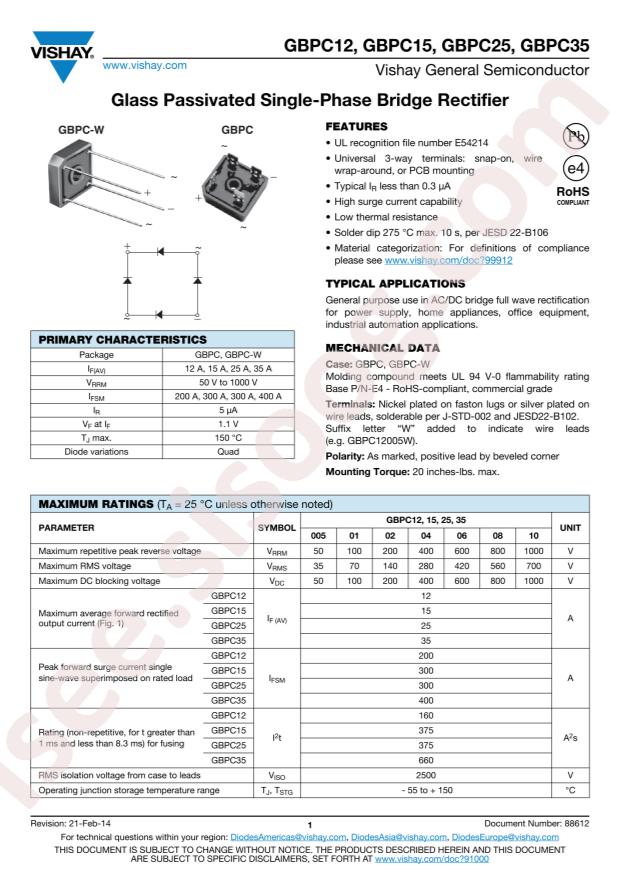

GBPC12/15/25/35 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Bridge Rectifiers
- Datasheet: Vishay Intertech GBPC3510W-E4/51
- Reverse Voltage (Vr): 1kV
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.1V@17.5A
- Peak Forward Surge Current: 400A
- Reverse Leakage Current (Ir): 5uA@1kV
- Average Rectified Current (Io): 35A
- Package: GBPC-W
- Manufacturer: Vishay Intertech
- Series: -
- Packaging: Bulk
- Part Status: Active
- Diode Type: Single Phase
- Technology: Standard
- Voltage - Peak Reverse (Max): 1kV
- Current - Average Rectified (Io): 35A
- Voltage - Forward (Vf) (Max) @ If: 1.1V @ 17.5A
- Current - Reverse Leakage @ Vr: 5µA @ 1000V
- Mounting Type: Through Hole
- Package / Case: 4-Square, GBPC-W
- Supplier Device Package: GBPC-W
- Base Part Number: GBPC35
- detail: Bridge Rectifier Single Phase Standard 1kV Through Hole GBPC-W
