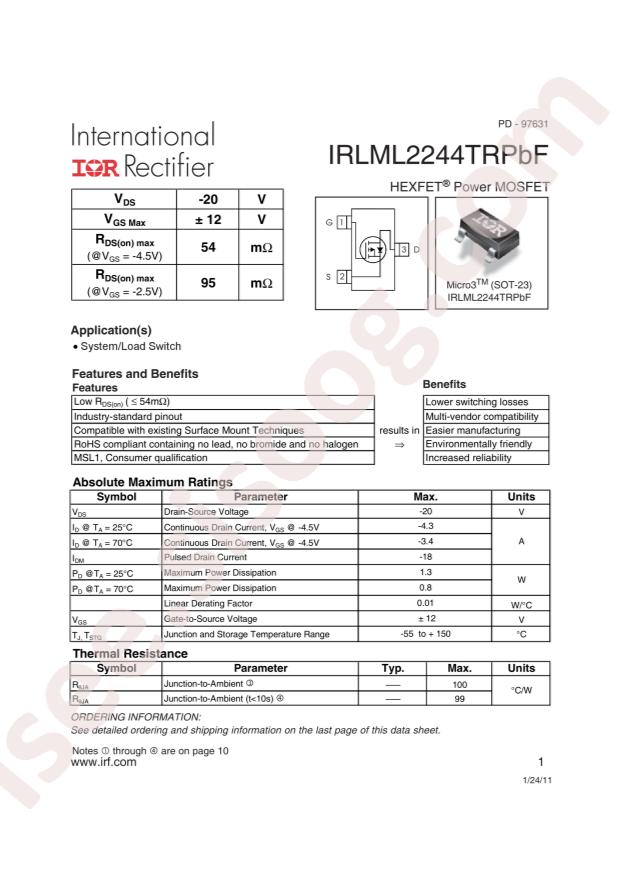

دیتاشیت IRLML2244TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
IRLML2244TRPBF
|
| حجم فایل |
72.769
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRLML2244TRPBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.3W
-
Total Gate Charge (Qg@Vgs):
6.9nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
570pF@16V
-
Continuous Drain Current (Id):
4.3A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.1V@10uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
54mΩ@4.5V,4.3A
-
Package:
SOT-23
-
Manufacturer:
Infineon Technologies
