LM2597, LM2597HV Datasheet دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LM2597, LM2597HV Datasheet	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Package / Case: 8-SOIC (0.154", 3.90mm Width)
Function: Step-Down
Output Configuration: Positive
Topology: Buck
Base Part Number: LM2597
Packaging: Tube
Operating Temperature: -40°C ~ 125°C (TJ)
Frequency - Switching: 150kHz
Supplier Device Package: 8-SOIC
Part Status: Obsolete
Current - Output: 500mA
Number of Outputs: 1
Series: SIMPLE SWITCHER®
Manufacturer: Texas Instruments
Voltage - Input (Max): 60V
Synchronous Rectifier: No
Voltage - Output (Min/Fixed): 5V
Voltage - Input (Min): 4.5V
Mounting Type: Surface Mount
Voltage - Output (Max): -
Output Type: Fixed

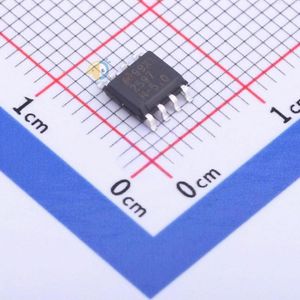

detail: Buck Switching Regulator IC Positive Fixed 5V 1 Output 500mA 8-SOIC (0.154", 3.90mm Width)
