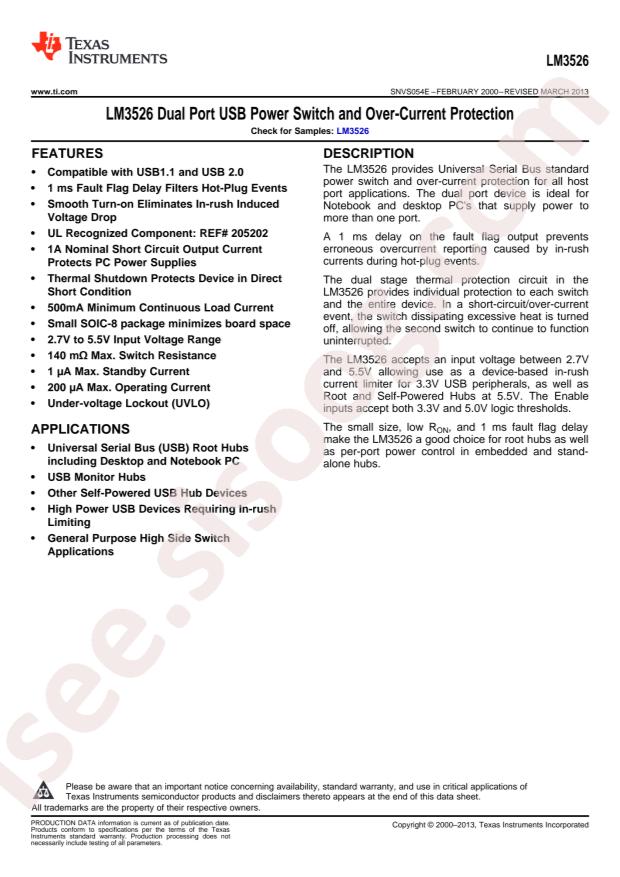

LM3526M-H/NOPB 数据手册
其他文档
LM3526 20 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments LM3526M-H/NOPB
- Input Voltage: 2.7V~5.5V
- Output Current: 500mA
- Number of Outputs: 2
- Resistor On-State: 100mΩ
- Operating Temperature -: -40°C~+125°C
- Package: SOIC-8
- Manufacturer: Texas Instruments
- Series: -
- Output Configuration: High Side
- Output Type: P-Channel
- Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
- Packaging: Tube
- Ratio - Input:Output: 1:2
- Input Type: Non-Inverting
- Current - Output (Max): 500mA
- Voltage - Supply (Vcc/Vdd): Not Required
- Switch Type: USB Switch
- Supplier Device Package: 8-SOIC
- Base Part Number: LM3526
- Features: Status Flag
- Voltage - Load: 2.7V ~ 5.5V
- Interface: On/Off
- Rds On (Typ): 100mOhm
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Operating Temperature: -40°C ~ 125°C (TJ)
- detail: Power Switch/Driver 1:2 P-Channel 500mA 8-SOIC
