دیتاشیت LM3940IS-3.3/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM3940 |
|---|---|
| حجم فایل | 2048.246 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LM3940 |

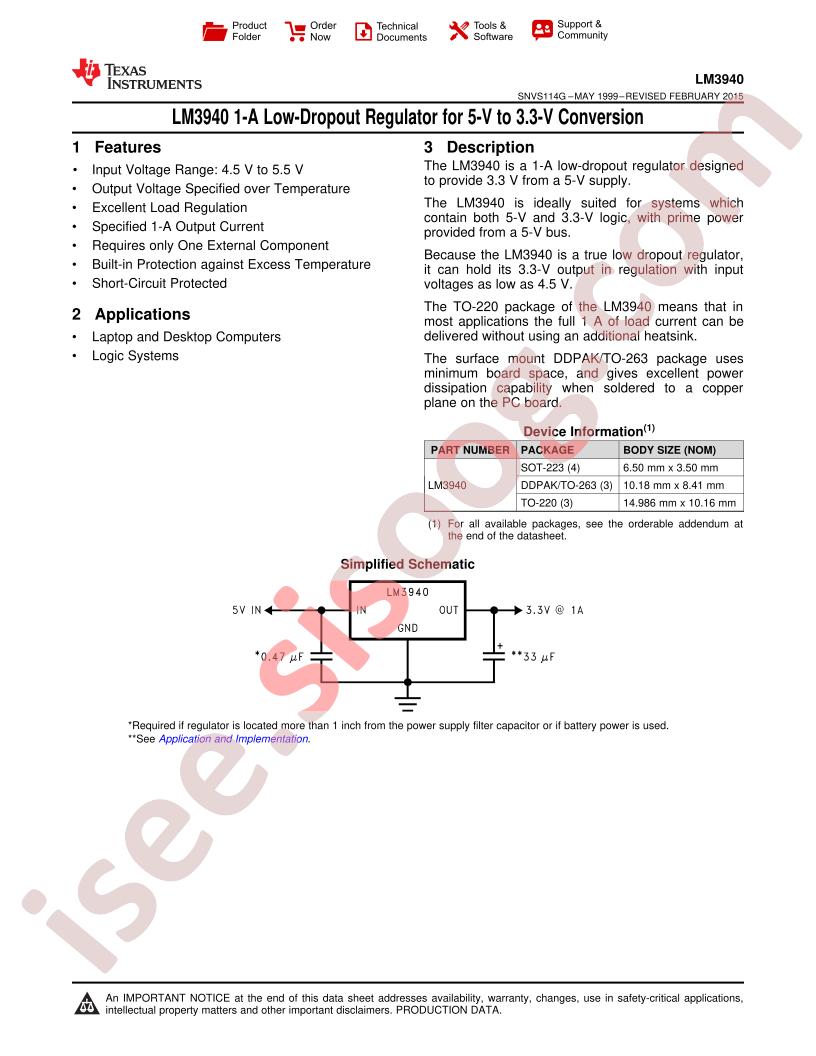

LM3940 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM3940IS-3.3/NOPB
- Package: TO-263-3
- Manufacturer: Texas Instruments
- Operating Temperature: -40°C ~ 125°C
- Base Part Number: LM3940
- Supplier Device Package: DDPAK/TO-263-3
- Voltage - Output (Max): -
- Output Configuration: Positive
- PSRR: -
- Output Type: Fixed
- Voltage Dropout (Max): 0.2V @ 100mA
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Tube
- Voltage - Output (Min/Fixed): 3.3V
- Protection Features: Over Temperature, Short Circuit
- Series: -
- Voltage - Input (Max): 7.5V
- Current - Output: 1A
- Part Status: Not For New Designs
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Control Features: -
- detail: Linear Voltage Regulator IC 1 Output 1A DDPAK/TO-263-3
