دیتاشیت LM5007MM/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM5007
|
| حجم فایل |
1195.188
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:

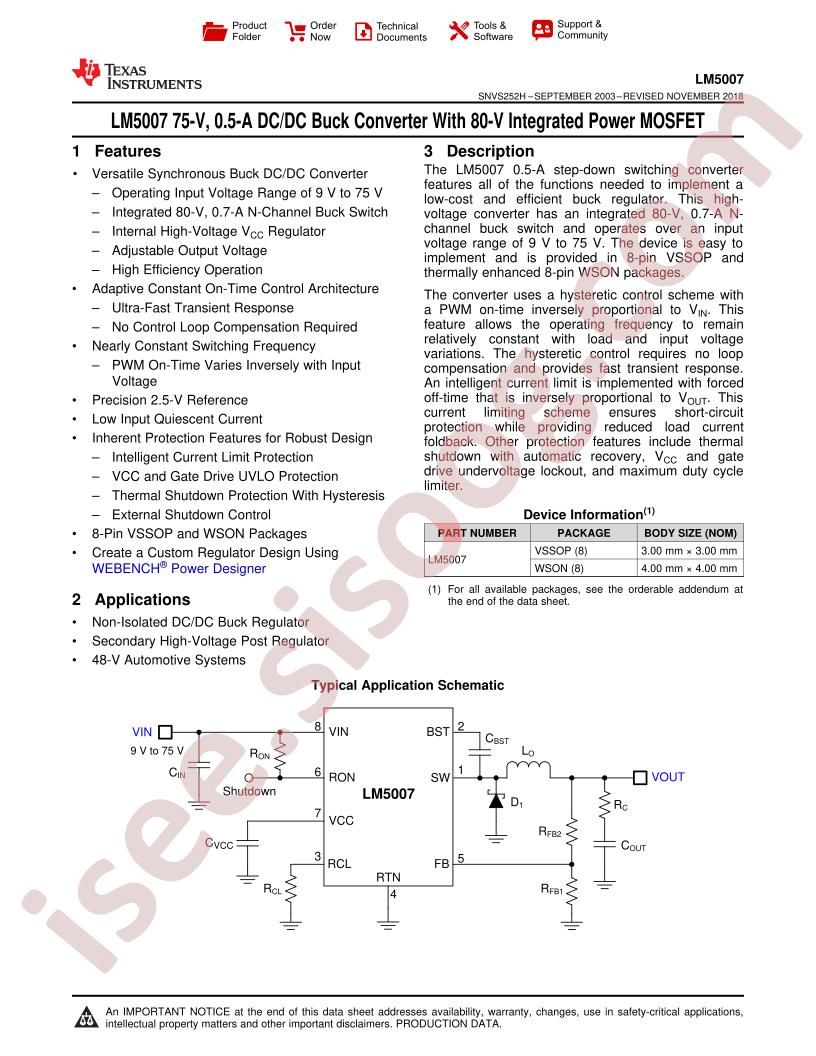

Texas Instruments LM5007MM/NOPB
-
Output Type:
Adjustable
-
Input Voltage:
9V~75V
-
Output Voltage:
2.5V~73V
-
Number of Outputs:
1
-
Switching Frequency:
-
-
Output Current (Max):
500mA
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
VSSOP-8-0.65mm
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
-
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-VSSOP
-
Voltage - Output (Min/Fixed):
2.5V
-
Current - Output:
500mA
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
73V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
75V
-
Base Part Number:
LM5007
-
Voltage - Input (Min):
9V
-
Synchronous Rectifier:
No
-
detail:
Buck Switching Regulator IC Positive Adjustable 2.5V 1 Output 500mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
