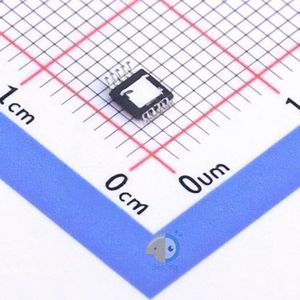

دیتاشیت LT8608IMSE#PBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT8608IMSE#PBF
|
| حجم فایل |
104.733
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices LT8608IMSE#PBF
-
Output Type:
Adjustable
-
Input Voltage:
3V~42V
-
Output Voltage:
0.778V~42V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
1.5A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
MSOP-10-EP
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Voltage - Input (Min):
3V
-
Voltage - Input (Max):
42V
-
Voltage - Output (Min/Fixed):
0.778V
-
Voltage - Output (Max):
42V
-
Current - Output:
1.5A
-
Frequency - Switching:
200kHz ~ 2MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Supplier Device Package:
10-MSOP-EP
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.778V 1 Output 1.5A 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
