LT3693IMSE#PBF 数据手册
其他文档
LTpowerCAD II Quick Start Guide 36 pages
LTpowerCAD II User Guide 60 pages

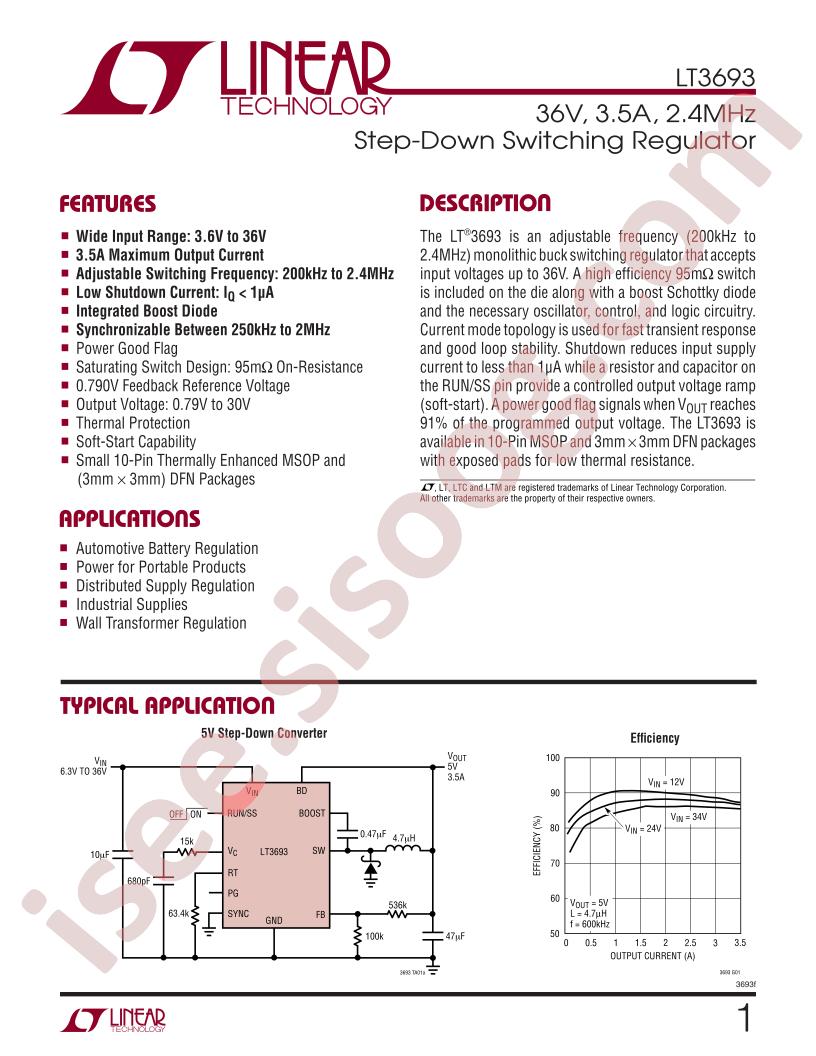

LT3693 Datasheet 24 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LT3693IMSE#PBF
- Output Type: Adjustable
- Input Voltage: 3.6V~36V
- Output Voltage: 0.79V~30V
- Number of Outputs: 1
- Switching Frequency: 2.45MHz
- Output Current (Max): 3.5A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: MSOP-10-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 3.6V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 0.79V
- Voltage - Output (Max): 30V
- Current - Output: 3.5A
- Frequency - Switching: 230kHz ~ 2.45MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 10-MSOP-EP
- Base Part Number: LT3693
- detail: Buck Switching Regulator IC Positive Adjustable 0.79V 1 Output 3.5A 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
