MAX6125EUR+T دیتاشیت

MAX6125EUR+T

مشخصات دیتاشیت

نام دیتاشیت MAX6125EUR+T
حجم فایل 93.957 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

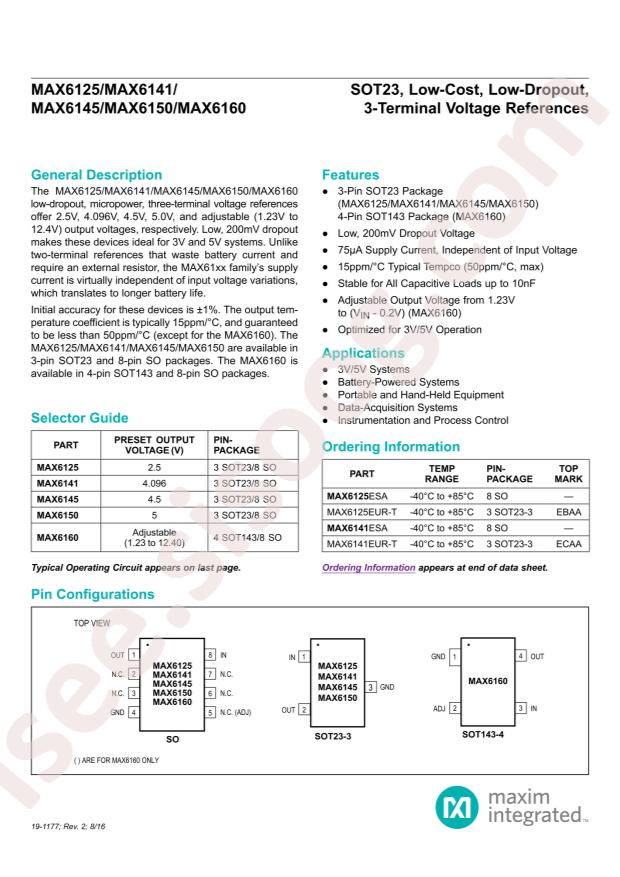

دانلود دیتاشیت MAX6125EUR+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX6125-6160 12 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX6125EUR+T
  • Tolerance: ±1%
  • Output Type: Fixed
  • Input Voltage: 2.7V~12.6V
  • Output Current: 1mA
  • Output Voltage: 2.5V
  • Reference Type: series connection
  • Supply Current: 130uA
  • Noise - 10Hz to 10kHz: 500uVp-p
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Noise - 1/10Hz to 10Hz: 15uVp-p
  • Temperature Coefficient: 50ppm/°C

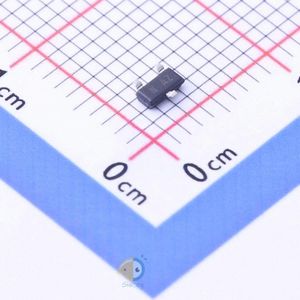

  • Package: SOT-23(TO-236)
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Voltage - Input: 2.7V ~ 12.6V
  • Current - Supply: 130µA
  • Supplier Device Package: SOT-23-3
  • Current - Output: 1mA
  • Part Status: Active
  • Noise - 0.1Hz to 10Hz: 15µVp-p
  • Series: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Voltage - Output (Min/Fixed): 2.5V
  • Packaging: Cut Tape (CT)
  • Base Part Number: MAX6125
  • detail: Series Voltage Reference IC ±1% SOT-23-3
