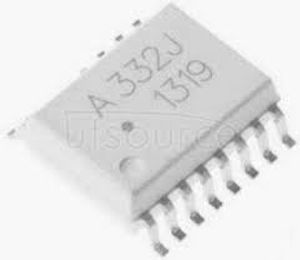

ACPL-332J-500E
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Broadcom/AVAGO |
| Package | 16-SOIC (0.295", 7.50mm Width) |
| Datasheet | ACPL-332J-500E |
| Description | 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO |
فروشنده های ACPL-332J-500E
فروشگاهی یافت نشد
مشخصات ACPL-332J-500E
- RoHS true
- Category Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
- Datasheet Broadcom/AVAGO ACPL-332J-500E
- Input Type DC
- Supply Voltage 15V~30V
- Number of Channels 1
- Operating Temperature -40°C~+105°C
- Isolation Voltage(rms) 5000V
- Propagation Delay tpLH/tpHL 250ns
- Common Mode Transient Immunity (CMTI) 15kV/us
- Package SOP-16-300mil
- Manufacturer Broadcom/AVAGO
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Technology Optical Coupling
- Voltage - Isolation 5000Vrms
- Common Mode Transient Immunity (Min) 15kV/µs
- Propagation Delay tpLH / tpHL (Max) 250ns, 250ns
- Pulse Width Distortion (Max) 100ns
- Rise / Fall Time (Typ) 50ns, 50ns
- Current - Output High, Low 2A, 2A
- Current - Peak Output 2.5A
- Voltage - Forward (Vf) (Typ) 1.6V
- Current - DC Forward (If) (Max) 25mA
- Voltage - Output Supply 15V ~ 30V
- Mounting Type Surface Mount
- Package / Case 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package 16-SO
- Approval Agency CSA, IEC/EN/DIN, UR
- detail 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO
