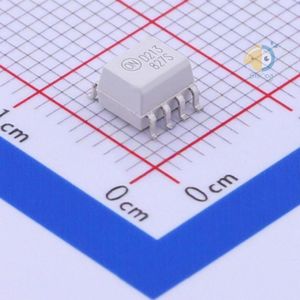

MOCD213R2M
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | MOCD2xxM |
| Description | Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC |
فروشنده های MOCD213R2M
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات MOCD213R2M
- RoHS true
- Category Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Phototransistor Output
- Datasheet onsemi MOCD213R2M
- Fall time 4.7us@2mA,100Ω
- Rise time 3.2us@2mA,100Ω
- Output Type Phototransistor
- Output Current 150mA
- Forward Voltage 1.15V
- Reverse Voltage 6V
- Number of Outputs 2
- Input voltage type DC
- Operating Temperature -40°C~+100°C
- Receiving End Voltage 70V
- Isolation Voltage(rms) 2500V
- Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF) 0.4V@2mA,10mA
- Package SO-8
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Number of Channels 2
- Voltage - Isolation 2500Vrms
- Current Transfer Ratio (Min) 100% @ 10mA
- Current Transfer Ratio (Max) -
- Turn On / Turn Off Time (Typ) 3µs, 2.8µs
- Rise / Fall Time (Typ) 1.6µs, 2.2µs
- Input Type DC
- Voltage - Output (Max) 70V
- Current - Output / Channel 150mA
- Voltage - Forward (Vf) (Typ) 1.25V
- Current - DC Forward (If) (Max) 60mA
- Vce Saturation (Max) 400mV
- Mounting Type Surface Mount
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package 8-SOIC
- Base Part Number MOCD21
- detail Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC
