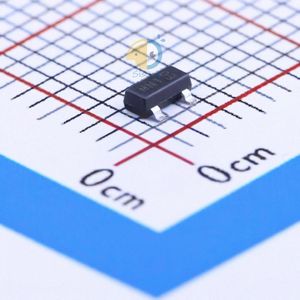

2N7002A-7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Diodes Incorporated |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | 2N7000, 2N7002, NDS7002A |
| Description | N-Channel 60V 115mA (Ta) 200mW (Ta) Surface Mount SOT-23 (TO-236AB) |
فروشنده های 2N7002A-7
فروشگاهی یافت نشد
مشخصات 2N7002A-7
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Diodes Incorporated 2N7002A-7
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 370mW
- Drain Source Voltage (Vdss) 60V
- Input Capacitance (Ciss@Vds) 23pF@25V
- Continuous Drain Current (Id) 180mA
- Gate Threshold Voltage (Vgs(th)@Id) 2V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 6Ω@5V,115mA
- Package SOT-23
- Manufacturer Diodes Incorporated
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 115mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
- Rds On (Max) @ Id, Vgs 7.5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id 2.5V @ 250µA
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 50pF @ 25V
- FET Feature -
- Power Dissipation (Max) 200mW (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SOT-23 (TO-236AB)
- Package / Case TO-236-3, SC-59, SOT-23-3
- Base Part Number 2N7002
- detail N-Channel 60V 115mA (Ta) 200mW (Ta) Surface Mount SOT-23 (TO-236AB)
