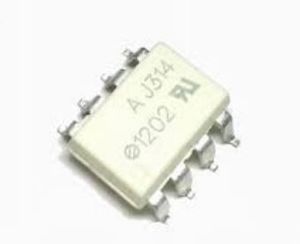

مشخصات HCPL-J314-500E CODE:AJ314 DIP8
- Manufacturer Broadcom Limited
- Series -
- Packaging Tape & Reel (TR)
- Part Status Active
- Technology Optical Coupling
- Number of Channels 1
- Voltage - Isolation 3750Vrms
- Common Mode Transient Immunity (Min) 25kV/µs
- Propagation Delay tpLH / tpHL (Max) 700ns, 700ns
- Pulse Width Distortion (Max) -
- Rise / Fall Time (Typ) 50ns, 50ns
- Current - Output High, Low 400mA, 400mA
- Current - Peak Output 600mA
- Voltage - Forward (Vf) (Typ) 1.5V
- Current - DC Forward (If) (Max) 25mA
- Voltage - Output Supply 10V ~ 30V
- Operating Temperature -40°C ~ 100°C
- Mounting Type Surface Mount
- Package / Case 8-SMD, Gull Wing
- Supplier Device Package 8-DIP Gull Wing
- Approval Agency CSA, IEC/EN/DIN, UR
- detail 600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
